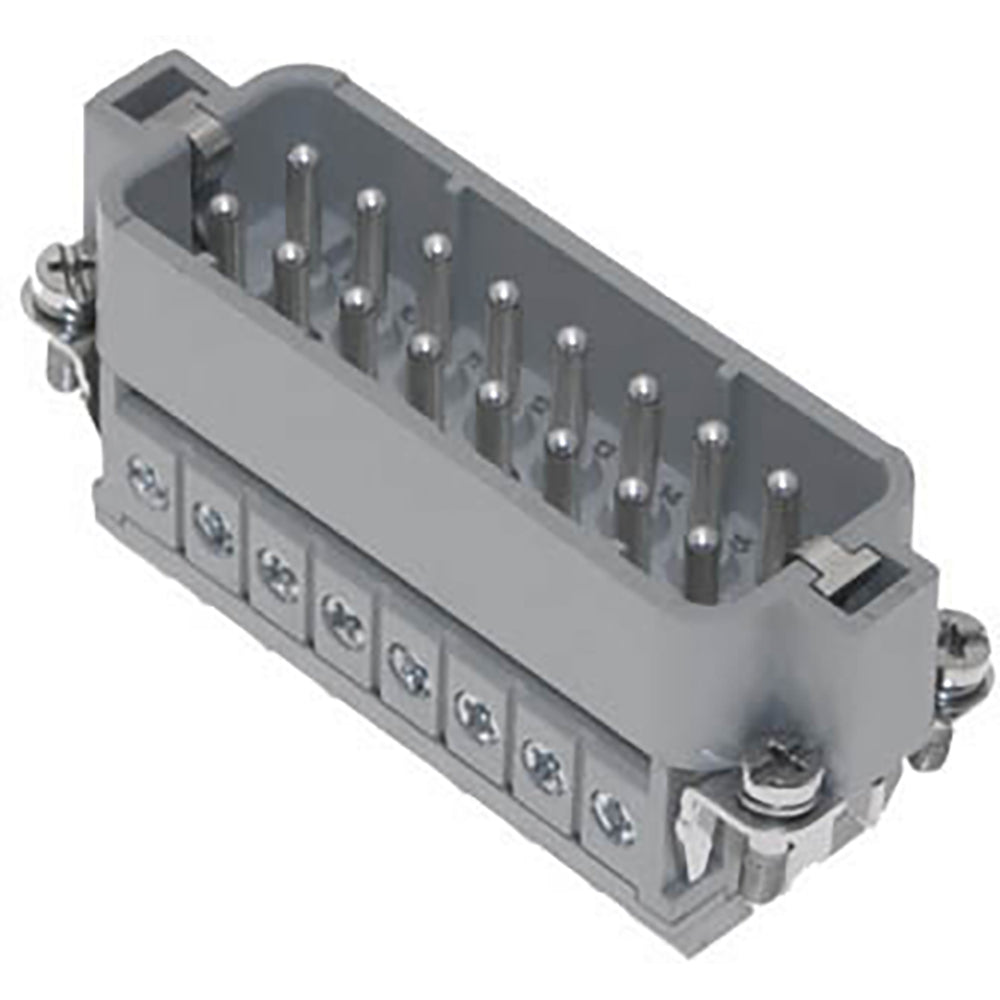

Mencom CDAM-16N Rectangular Insert 16 A (Size 66.16)

Product Description

Mencom CDAM-16N is a CDA series rectangular male insert with 16 pins and screw termination, rated 16 A for connector assemblies. The insert is molded from self-extinguishing thermoplastic, supports 14-18 AWG conductors, and has a UL working temperature range of -40 to +125 C. Contacts are silver plated, contacts numbered 17-32, and the insert carries a 600 V rating and size 66.16.

• CDA series 16-pin male rectangular insert with screw termination and size 66.16
• 16 A current rating, 600 V voltage rating, silver-plated contacts; contact numbering 17-32
• Self-extinguishing thermoplastic construction, UL working temperature -40 to +125 C, supports 14-18 AWG

Product Highlights

16-pin CDA male insert, screw termination, 16 A/600 V, silver-plated contacts, size 66.16

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CDAM-16N

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: CDAM-16N
• Series: CDA
• Gender: Male
• Pin Count: 16
• Size: 66.16
• Current Rating: 16 A
• Voltage Rating: 600 V
• Terminal Type: Screw
• Material: Self-extinguishing thermoplastic
• Contact Plating: Silver
• Temperature Range: -40 to +125 C
• Upper AWG: 14
• Lower AWG: 18
• Contact Numbering: 17-32
• Housing/Insert Type: Standard
• Gasket/O-Ring: No
• Component Type: Insert
