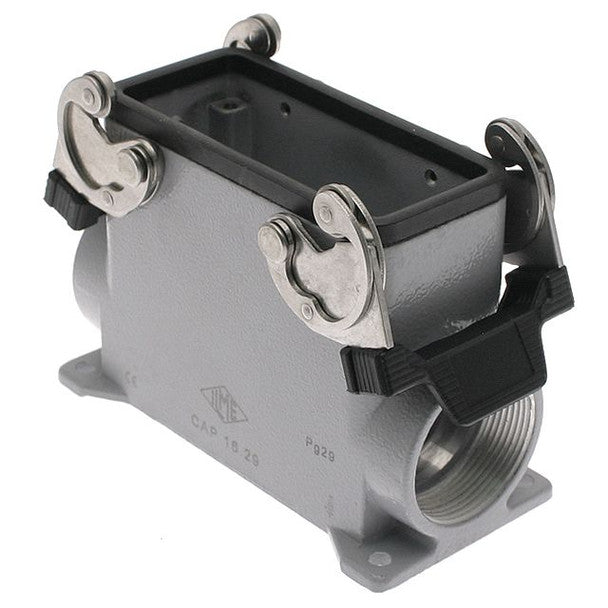

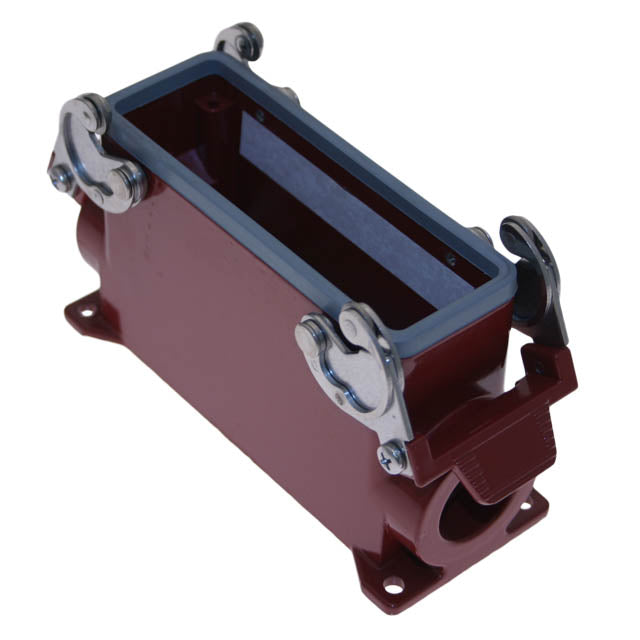

Mencom CAP-16.229 Standard Rectangular Base (Size 77.27, 2 Side PG29)

Product Description

The Mencom CAP-16.229 is a rectangular surface-mount base for industrial connectors with an aluminum die-cast enclosure and a double-latch design. It provides two side PG29 cable entries and an insert/enclosure dimension of 77.27, and uses a patented stainless steel locking system that preserves sealing performance for over 500 mating cycles. The unit is rated IP66, operates from -40 C to +125 C, and includes a gasketed seal; no cover is provided. Weight approximately 0.9 lb.

• Aluminum die-cast enclosure with gasket; insert/enclosure dimension 77.27; weight ~0.9 lb
• Patented stainless steel locking system maintains protection for over 500 mating cycles; IP66 rated
• Double-latch surface-mount base with two side PG29 cable entries; ILME series CN; no cover

Product Highlights

Surface-mount rectangular base, double latch, gasketed sealing, two side PG29 entries, IP66, operating range -40 C to +125 C

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CAP-16.229

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: CAP-16.229
• Product Type: Rectangular Base
• Series: CN
• Component Type: Base
• Mounting Type: Surface mount
• Latch Type: Double latch
• Hood Entry: Side
• Hood Thread: PG29
• Cable Entries: 2 Side PG29
• Insert Dimension: 77.27 (likely mm)
• Enclosure Dimension: 77.27 (likely mm)
• Material: Aluminum die-cast
• Gasket: Yes
• Cover: No
• Gender: Male
• Locking System: Patented stainless steel locking system
• IP Rating: IP66
• Operating Temperature: -40 C to +125 C
• Weight: 0.9 lb
