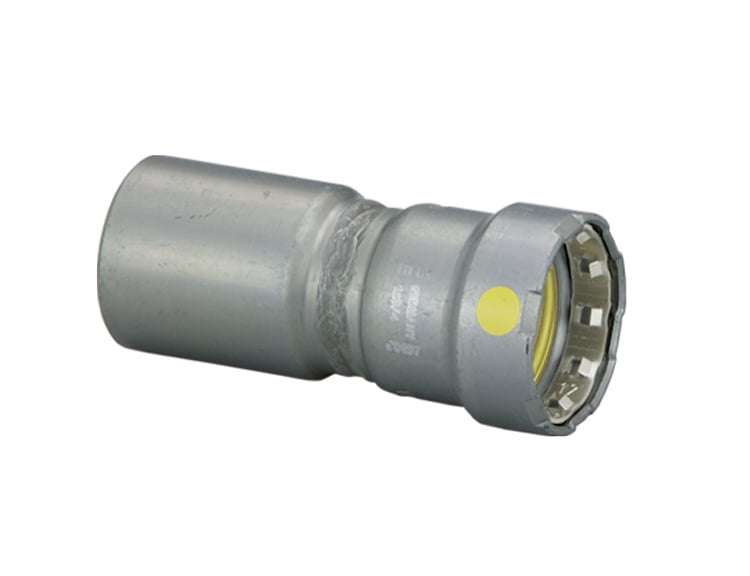

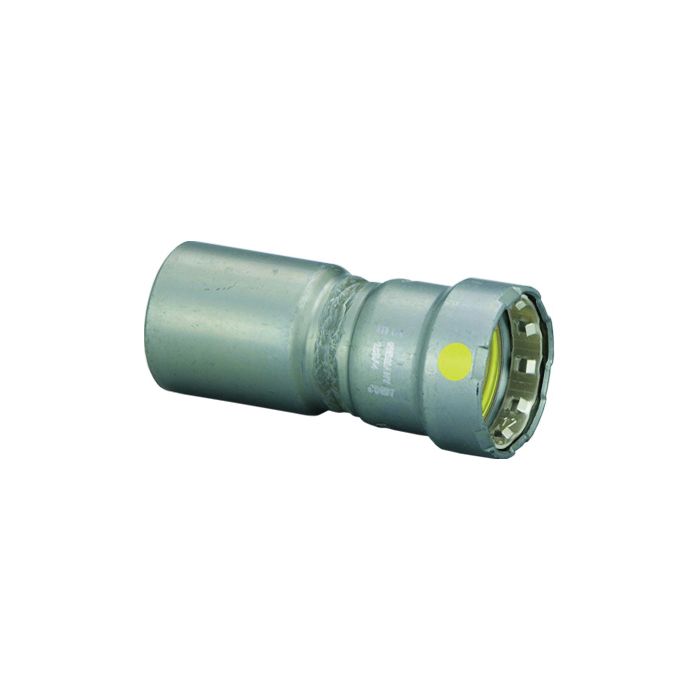

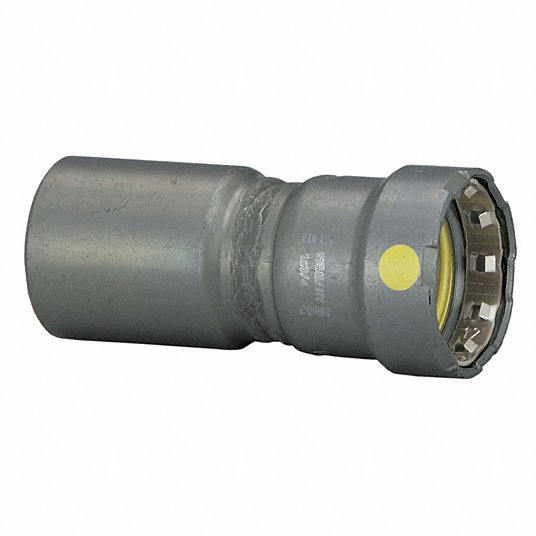

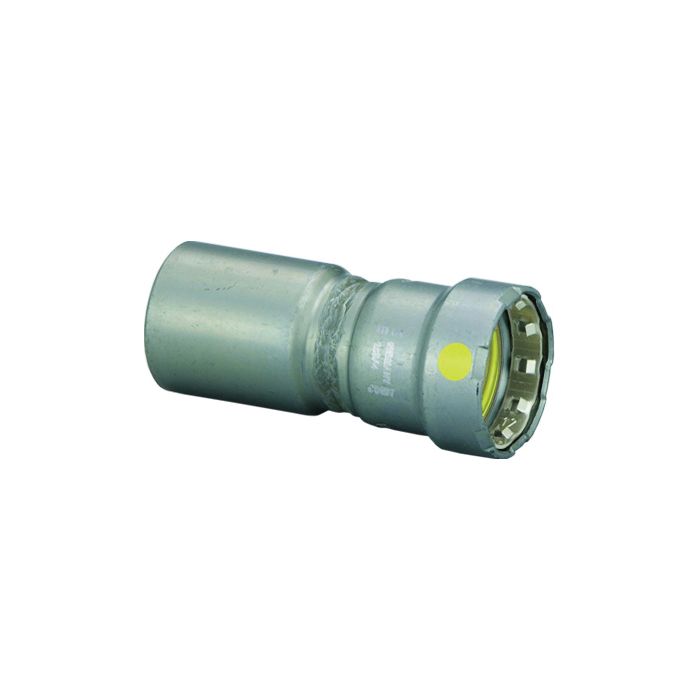

Megapress 26026 reducer pipe reducing coupling 1-1/2 x 1-1/4 in

Product Description

The MEGAPRESS 26026 is a carbon steel pipe reducer and reducing coupling fitting designed for gas applications. This fitting connects pipes with a nominal size of 1-1/2 x 1-1/4 inches, featuring a fitting x press end style. It is suitable for use with Schedule 5 to Schedule 40 black iron pipe and operates within a temperature range of -40 to 180 degrees F. This component facilitates secure connections in piping systems.

• Makes secure press connections in less than seven seconds.
• No oil or heavy threading equipment needed for installation.
• Features patented Viega Smart Connect® technology.

Product Highlights

Carbon steel reducing coupling for gas applications, offering quick, flameless press connections for black iron pipe.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 26026
• Country of Origin: Germany

Technical Specifications

• Manufacturer: VIEGA
• Nominal Size: 1-1/2 x 1-1/4 in
• Temperature Rating: -40 To 180 deg F
• Material: Carbon Steel
• End Style: Fitting x Press End Style
• Brand: MEGAPRESS
• MPN: 26026
• Fitting/Connector Type: Reducing Coupling
• Seal Material: HNBR
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
• Standards and Approvals: ABS Listed | ANSI LC4/CSA 6.32 | ASME B31 | CRN OA14541.6 | CSA B149.1 | FM 1920 | GL Listed | LR Certified | NFPA 13/13D/13R/31/54/58
• Overall Length: 4-17/32 in
• Maximum Operating Pressure: 125 psi
• Fitting Shape: Straight
