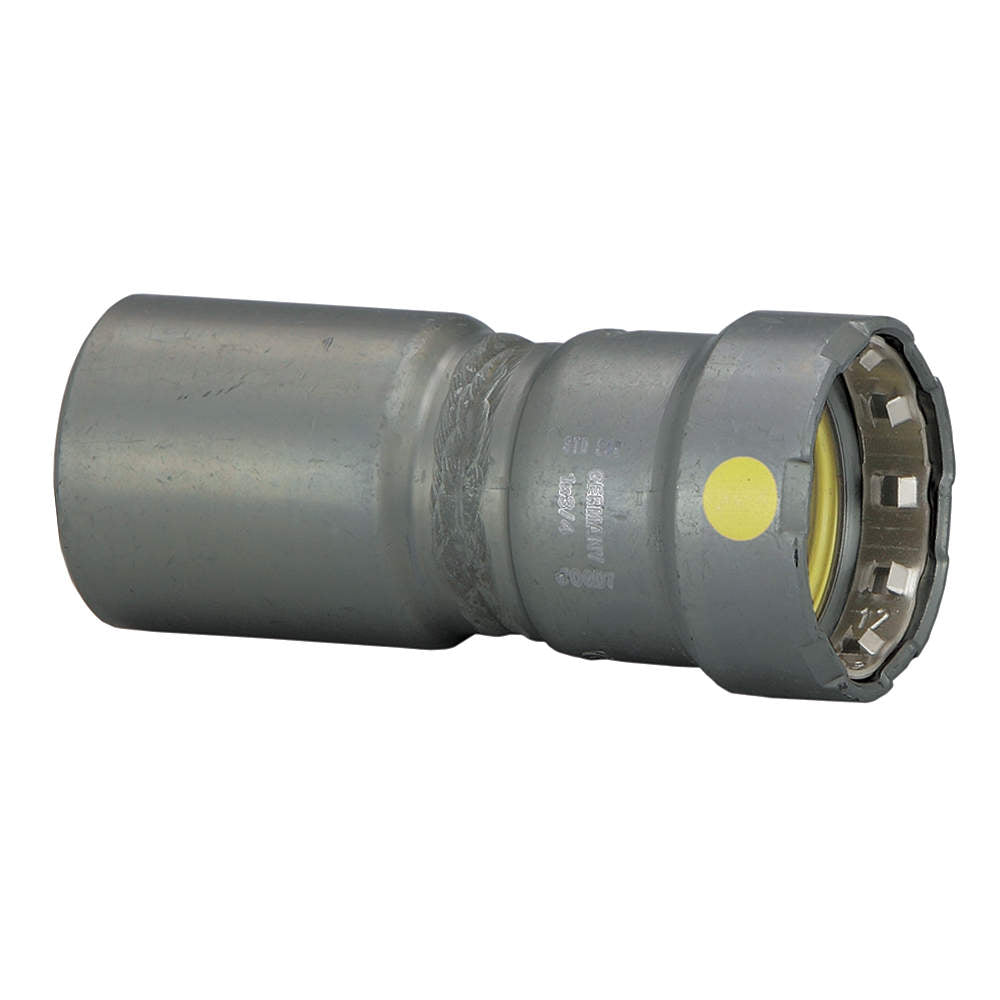

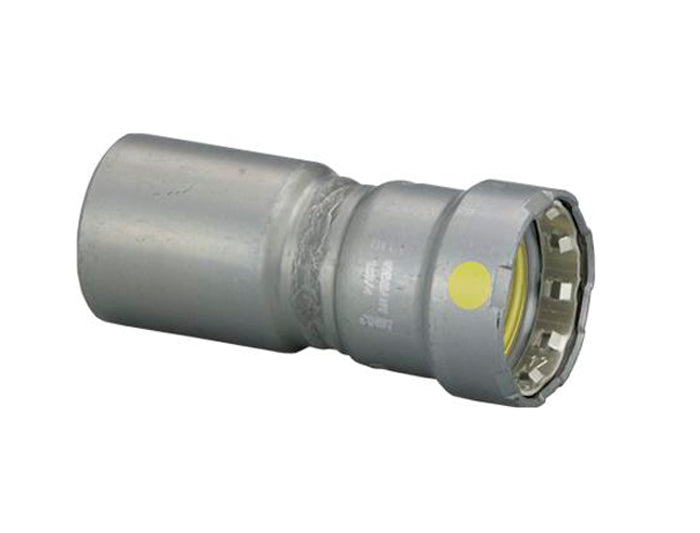

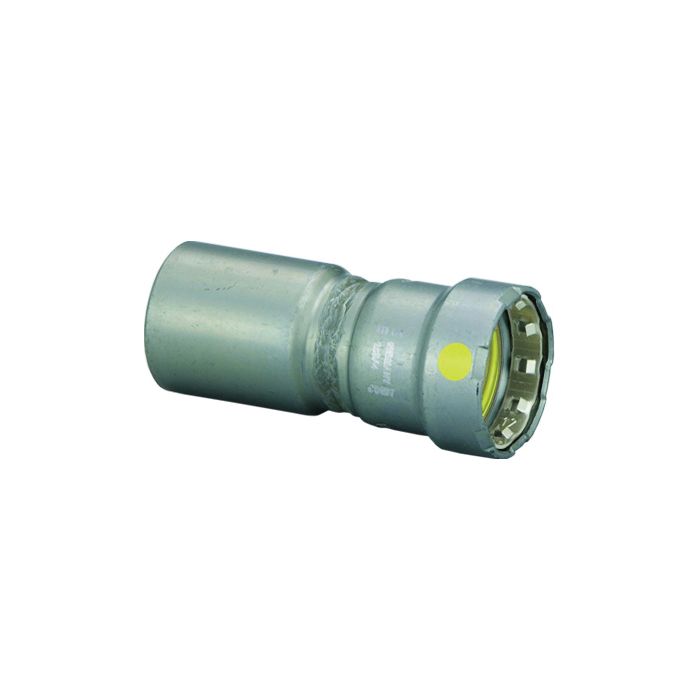

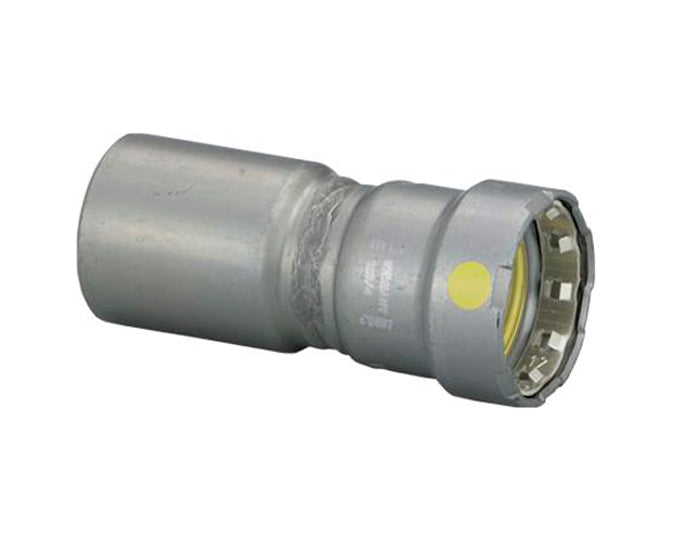

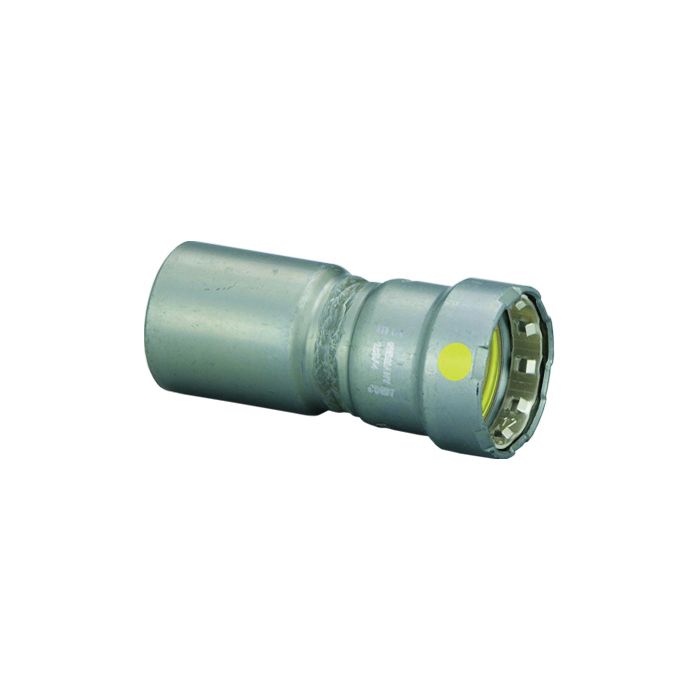

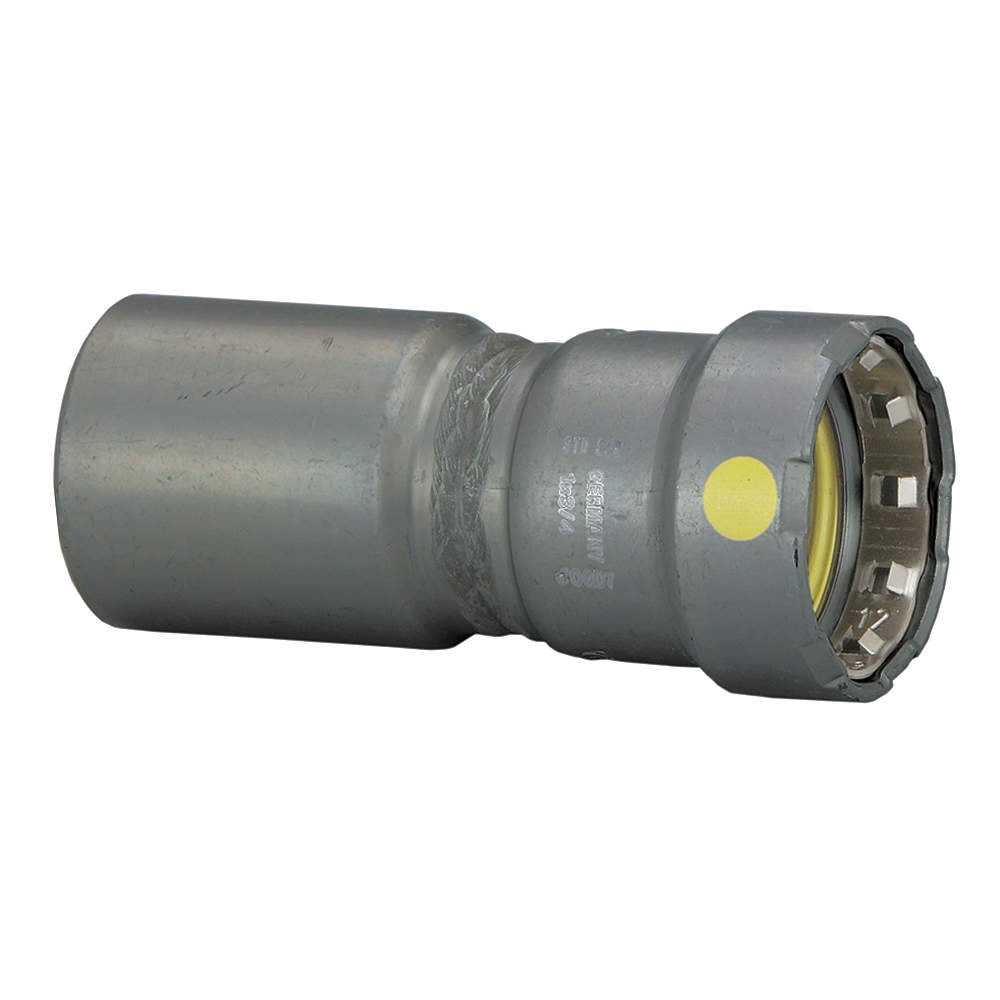

Megapress 26006 Reducer Pipe Reducing Coupling 1 X 1/2in

Product Description

The MEGAPRESS 26006 is a carbon steel pipe reducer, specifically a reducing coupling fitting/connector, designed for gas applications. This 1 x 1/2 inch nominal fitting features a Fitting x Press end style and operates within a temperature range of -40 to 180 degrees F. It is suitable for Schedule 5 to Schedule 40 black iron pipe systems, offering efficient installation by eliminating the need for cutting oils.

• Makes secure press connections in less than seven seconds.
• No oil or heavy threading equipment needed for installation.
• Features patented Viega Smart Connect technology.

Product Highlights

Carbon steel press system for gas, compatible with Schedule 5 to Schedule 40 black iron pipe.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 26006
• Country of Origin: Germany

Technical Specifications

• MPN: 26006
• Category: Steel Press Fittings
• Manufacturer: VIEGA
• Unit of Measure: EA
• Nominal Size: 1 x 1/2 in
• Temperature Rating: -40 To 180 deg F
• Brand: MEGAPRESS
• Fitting/Connector Type: Reducing Coupling
• Material: Carbon Steel
• End Style: Fitting x Press
• Product Type: Reducer
• Item Type: Fitting Reducer
• Application: Air, Fuel, Natural Gas
• Finish/Coating: Zinc Nickel Plated
• Fitting Side A Connection Type: FTG
• Fitting Side A Tube Size: 1 inch
• Fitting Side B Connection Type: Press-Fit
• Fitting Side B Pipe Size: 1/2 inch
• Max Operating Pressure: 125 psi
• O-ring Material: HNBR
• Resistance Properties: Chemical Resistant, Heat Resistant, Oil Resistant
• Specific Fitting Shape: Straight Adapter
• Standards/Certifications: ABS TYPE APPROVAL, ANSI LC4/CSA 6.32, CRN 0A14541.5 A/B, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO, IAPMO ANSI LC4/CSA 6.32, ICC, ICC-ES PMG-1036, IFGC, NFPA 54, NFPA 58
