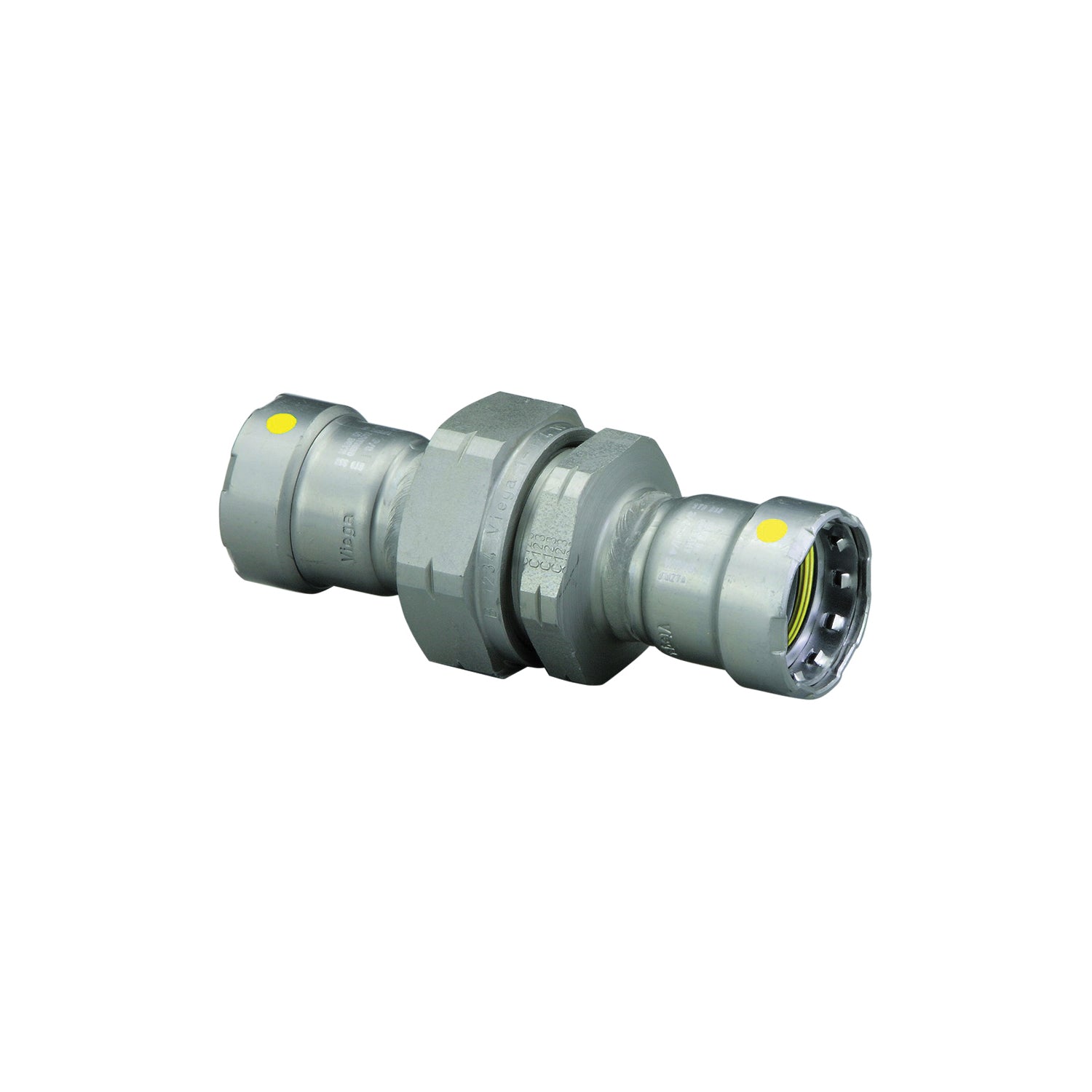

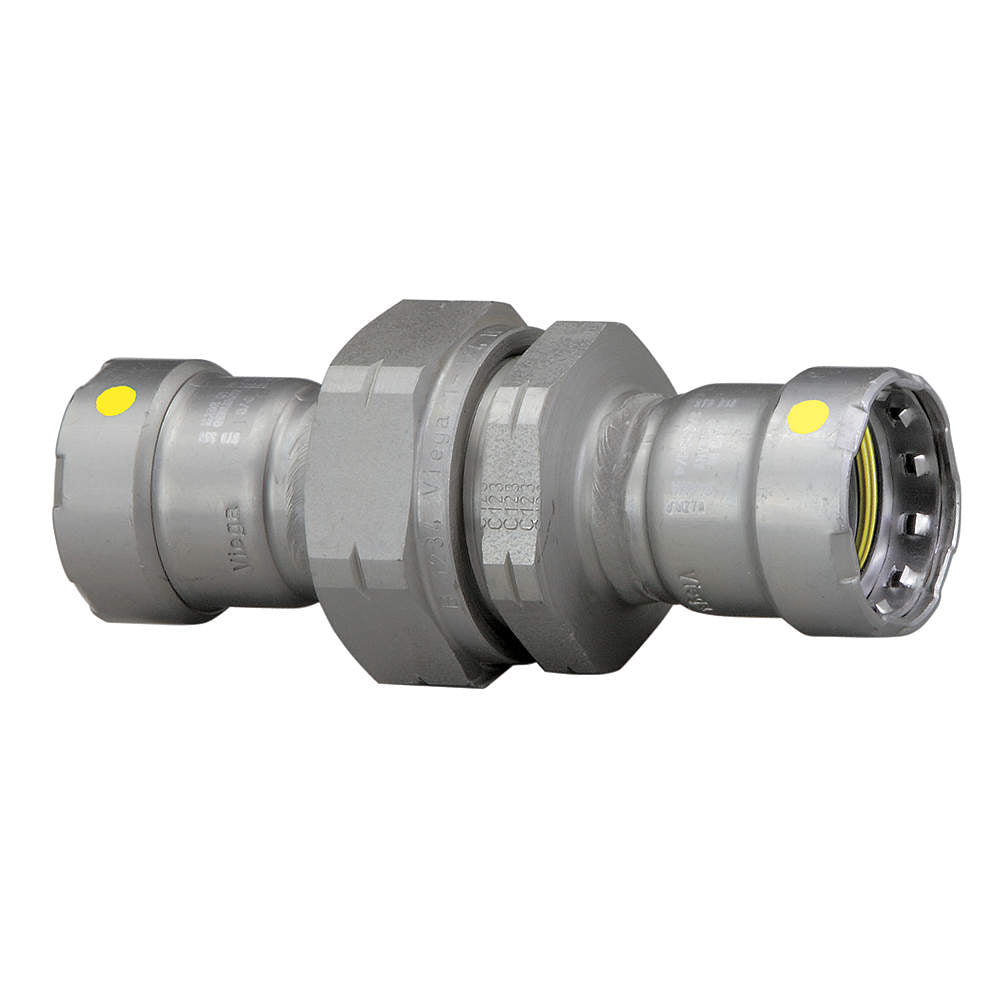

Megapress 25701 union pipe 1/2in

Product Description

The MEGAPRESS 25701 Pipe Union is a 1/2 inch carbon steel press fitting designed for gas applications. This union is suitable for use with Schedule 5 to Schedule 40 black iron pipe, offering a secure connection method. It operates within a temperature range of -40 to 180 degrees Fahrenheit and measures 4.47 inches in length. The system reduces installation time by eliminating the need for cutting oils.

• Makes secure press connections in less than seven seconds
• No oil or heavy threading equipment needed
• Patented Viega Smart Connect feature

Product Highlights

Carbon steel press union for gas applications, featuring quick installation and Smart Connect technology.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25701
• Country of Origin: Germany

Technical Specifications

• MPN: 25701
• Category: Steel Press Fittings
• Manufacturer: Viega
• Temperature Rating: -40 to 180 deg F
• Fitting Type: Union
• Material: Carbon Steel
• Product Length: 4.47 in
• Brand: MEGAPRESS
• End Style: Press
• Seal Material: HNBR
• Includes: HNBR Sealing Element (Yellow Dot)
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air, Vacuum
• Standards and Approvals: ABS, ANSI LC4/CSA 6.32, ASME B31, CRN OA14541.6, CSA B149.1, FM 1920, GL Listed, LR Certified, NFPA 13/13D/13R/31/54/58, IAPMO, ICC, ICC-ES PMG-1036, IFGC
• Model: 6660
• Connection Type: Press x Press
• Finish: Zinc Nickel Plated
• Max Operating Pressure: 125 psi
• Pipe Size: 1/2 in x 1/2 in
• Resistance Properties: Chemical Resistant, Heat Resistant, Oil Resistant
• Fitting Shape: Straight Union
• UPC: 30691514257014
