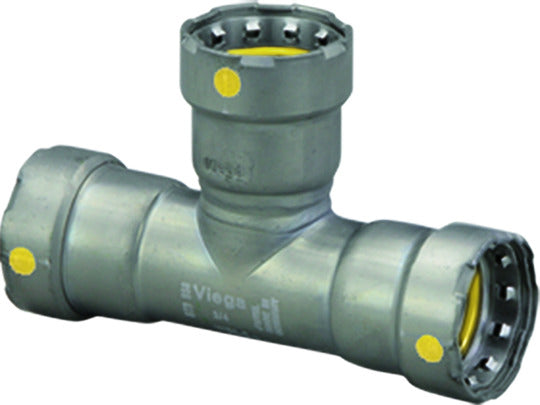

Megapress 25351 Pipe Tee 1-1/4 x 1-1/4 x 1 in

Product Description

The MEGAPRESS 25351 Pipe Tee is a carbon steel press fitting designed for gas applications. This 1-1/4 x 1-1/4 x 1 inch nominal tee is suitable for use with Schedule 5 to Schedule 40 black iron pipe. It operates within a temperature range of -40 to 180 deg F, providing a secure press connection for gas piping systems and reducing installation time.

• Makes secure press connections in less than seven seconds.
• No oil or heavy threading equipment needed for installation.
• Features patented Viega Smart Connect technology.

Product Highlights

Carbon steel press fitting for gas applications with black iron pipe, ensuring quick and clean installations.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25351
• Country of Origin: Germany

Technical Specifications

• MPN: 25351
• Category: Steel Press Fittings
• Manufacturer: Viega
• Nominal Size: 1-1/4 x 1-1/4 x 1 in
• Operating Temperature: -40 to 180 deg F
• Brand: MEGAPRESS
• Material: Carbon Steel
• Type: Tee
• Connection Type: Press x Press x Press
• Product Type: Tee Gas
• Sealing Element Material: HNBR
• Compatible Tube Material: Steel
• Finish/Coating: Zinc Nickel Plated
• Max Operating Pressure: 125 psi
• Overall Length: 6 15/32 in
• Resistance Properties: Corrosion Resistant
• Standards: ABS: AMERICA BUREAU OF SHIPPING, ABS Listed, ANSI LC4/CSA 6.32, ASME B31, CRN 0A14541.5 A/B, CRN 0A14541.6, CSA B149.1, FM 1920, GL Listed, IAPMO Uniform Plumbing Code (UPC), ICC International Mechanical Code (IMC), ICC-ES PMG-1036, IFGC, LR Certified, NFPA 13/13D/13R/31/54/58
• End Style: Press
• Origin: Import
• Sub Brand: MegaPress
• Series/Model: Model 6618
