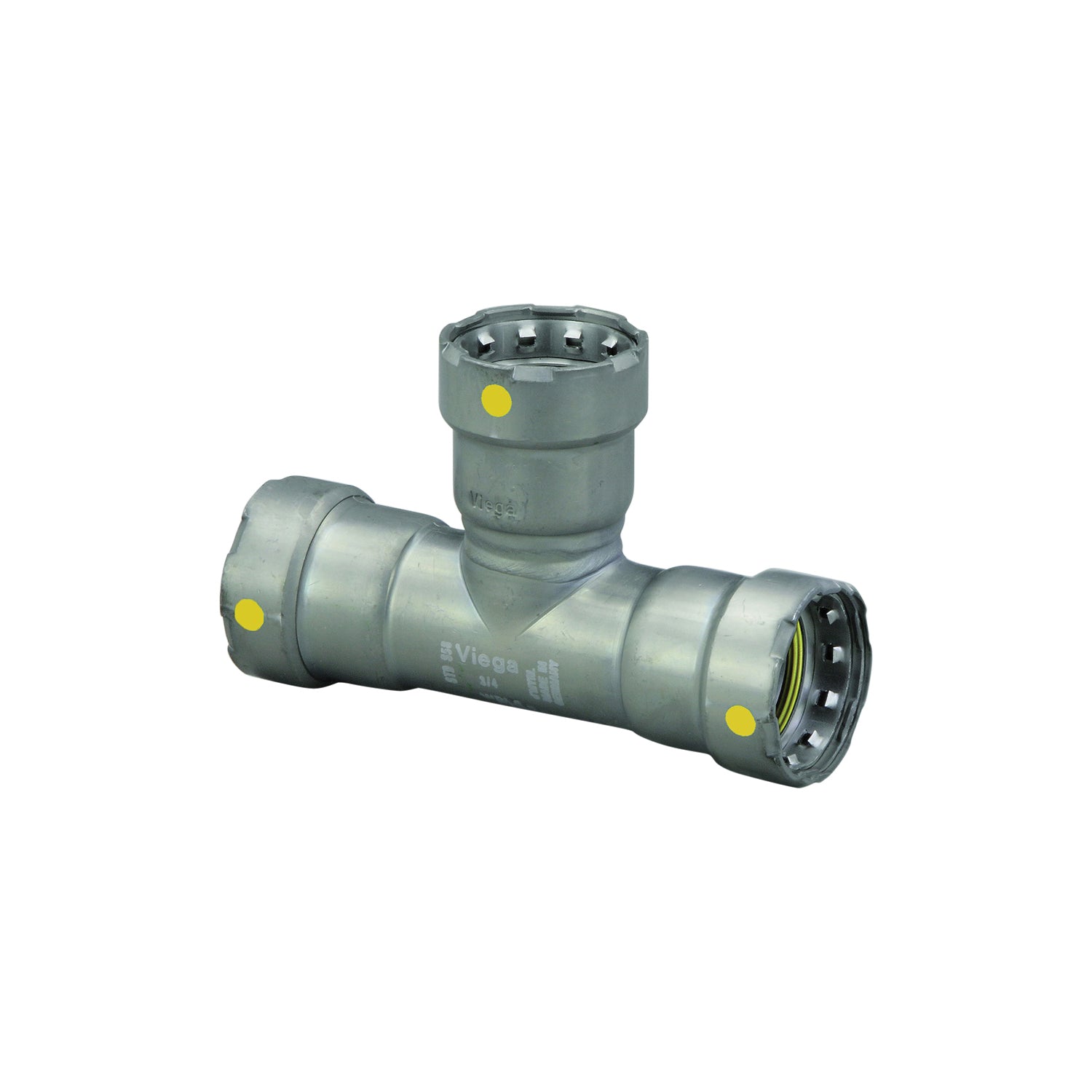

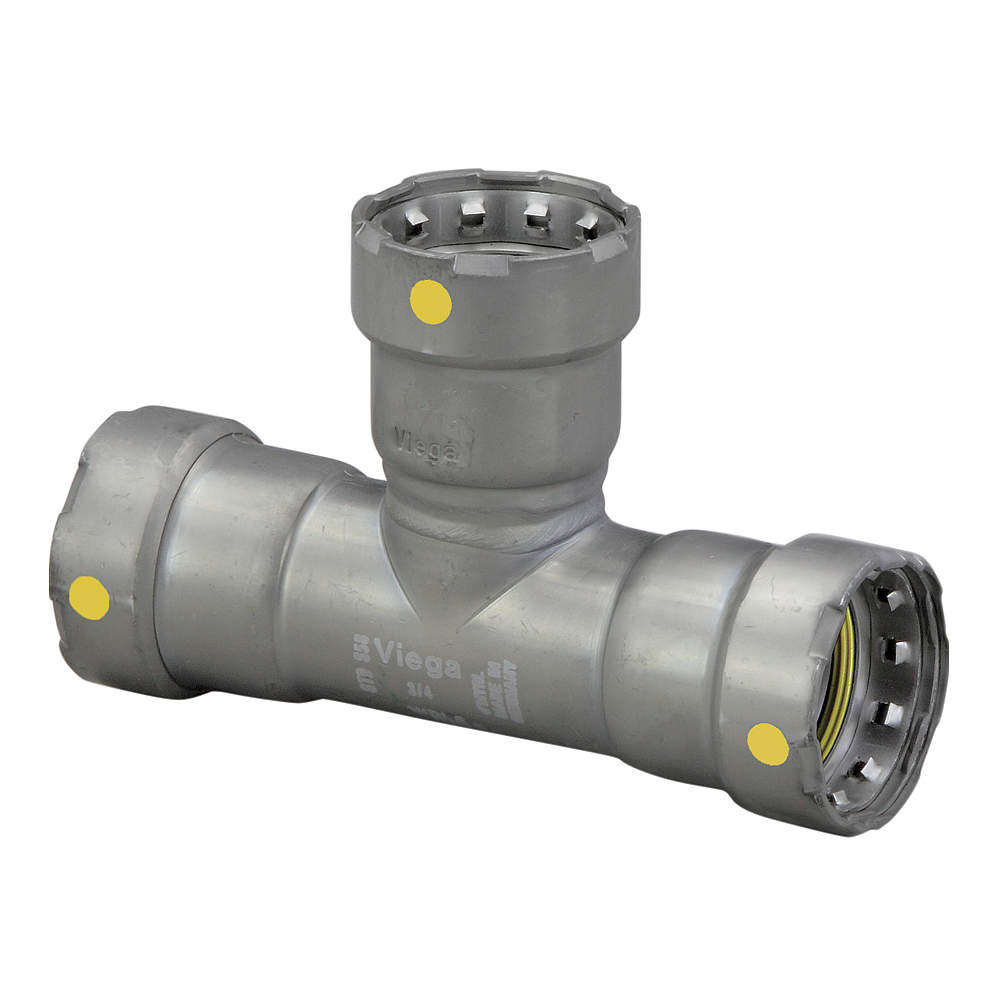

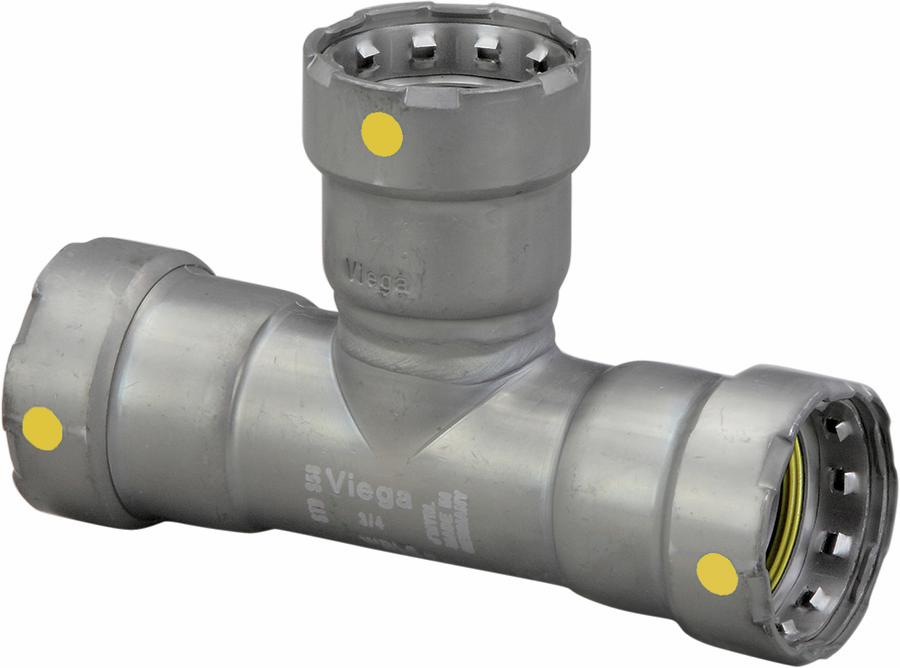

Megapress 25316 Tee Pipe 1-1/4in

Product Description

The MEGAPRESS 25316 Tee Pipe is a carbon steel press fitting designed for gas applications. This 1-1/4 inch nominal tee, made from carbon steel, is suitable for use with Schedule 5 to Schedule 40 black iron pipe. It facilitates secure press connections, reducing installation time by eliminating the need for cutting oils and heavy threading equipment. The fitting operates within a temperature range of -40 to 180 degrees F and has a maximum operating pressure of 125 psi. It is compatible with natural gas, LP gas, diesel fuel, compressed air, and vacuum systems.

• Makes secure press connections in less than seven seconds
• No oil or heavy threading equipment needed
• Patented Viega Smart Connect feature

Product Highlights

Carbon steel press tee for gas applications, featuring quick installation and Smart Connect technology.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25316
• Country of Origin: Germany

Technical Specifications

• MPN: 25316
• Manufacturer: VIEGA
• SKU: 262910
• Category: Steel Press Fittings
• Nominal Size: 1-1/4 in
• Temperature Rating: -40 To 180 deg F
• Fitting/Connector Type: Tee
• Material: Carbon Steel
• Brand: MEGAPRESS
• End Style: Press
• Seal Material: HNBR
• Includes: HNBR Sealing Element (Yellow Dot)
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
• Standards and Approvals: ABS Listed, ANSI LC4/CSA 6.32, ASME B31, CRN OA14541.6, CSA B149.1, FM 1920, GL Listed, LR Certified, NFPA 13/13D/13R/31/54/58, CRN 0A14541.5 A/B, IAPMO UNIFORM PLUMBING CODE (UPC), ICC INTERNATIONAL MECHANICAL CODE (IMC), ICC-ES PMG-1036, IFGC
• Connection Type: Press
• Max. Operating Pressure: 125 psi
• Finish, Coating: Zinc Nickel Plated
• Compatible Tube Material: Steel
• Connection Size: 1-1/4" Press X 1-1/4" Press X 1-1/4" Press
• Model: MegaPress-G
• Schedule: Sch. 40
• Special Feature: With Yellow Dot
• Pipe Compatibility: ASTM A53, A106, A135 and A795 Sch.5 – Sch.40 black steel pipe
