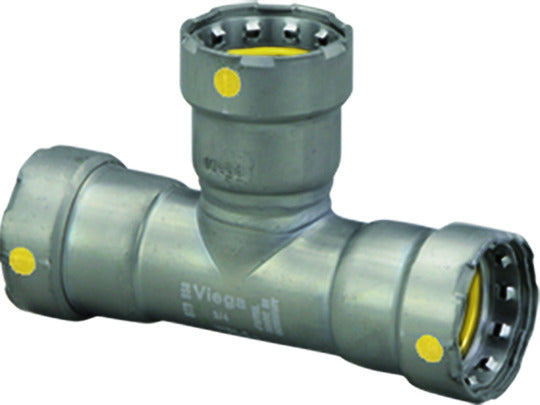

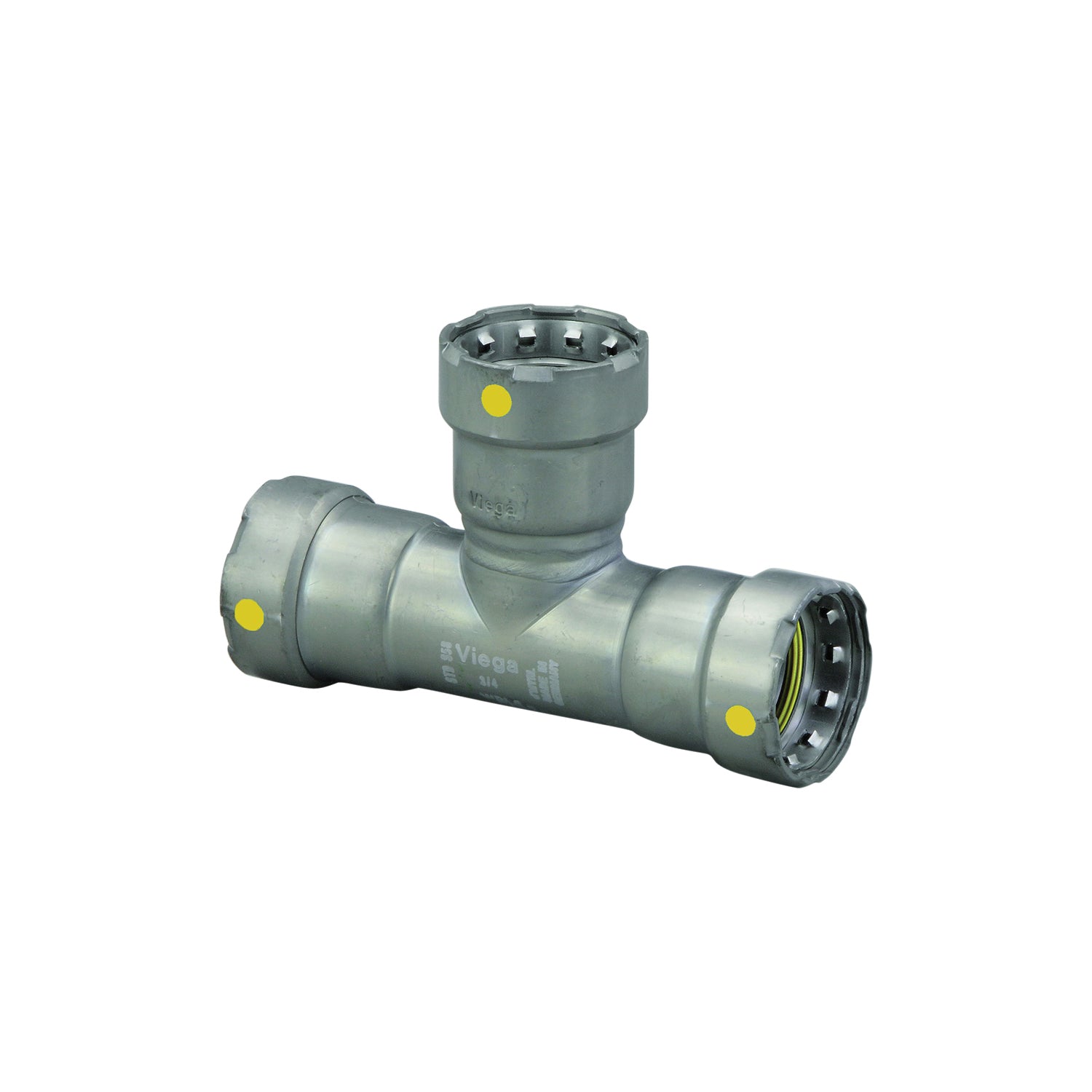

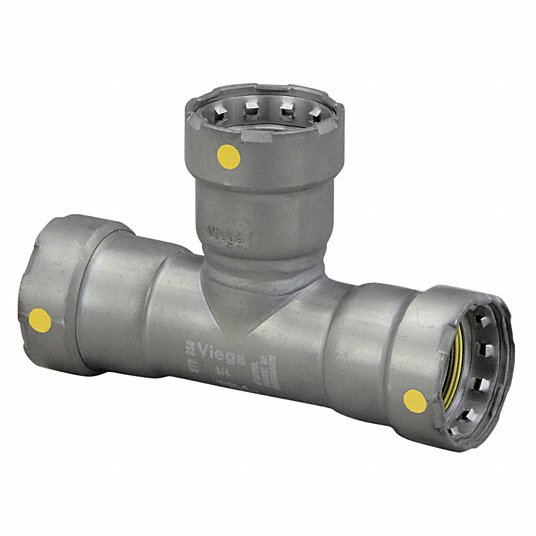

Megapress 25311 tee pipe 1in

Product Description

The MEGAPRESS 25311 Tee Pipe is a 1 inch nominal carbon steel press fitting designed for gas applications. This MegaPressG system can be used with Schedule 5 to Schedule 40 black iron pipe, reducing installation time and eliminating the need for messy cutting oils. It operates within a temperature range of -40 to 180 degrees Fahrenheit.

• Makes secure press connections in less than seven seconds.
• No oil or heavy threading equipment needed.
• Patented Viega Smart Connect feature.

Product Highlights

Carbon steel press fitting for gas applications, featuring quick, secure connections and Smart Connect technology.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25311
• Country of Origin: Germany

Technical Specifications

• Manufacturer: Viega
• Nominal Size: 1 in
• Temperature Rating: -40 to 180 deg F
• Fitting Type: Tee
• Connection Type: Press
• Material: Carbon Steel
• Brand: MEGAPRESS
• MPN: 25311
• End Style: Press
• Seal Material: HNBR
• Includes: HNBR Sealing Element (Yellow Dot)
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
• Domestic/Import: Import
• Standards and Approals: ABS Listed, ANSI LC4/CSA 6.32, ASME B31, CRN OA14541.6, CSA B149.1, FM 1920, GL Listed, LR Certified, NFPA 13/13D/13R/31/54/58, CRN 0A14541.5 A/B, IAPMO/UPC, ICC-ES PMG-1036, ICC/IMC, IFGC
• Length: 2.57 in
• Dimension A: 1.23 in
• Sub-brand: Tee, P x P x P, 1"
• Fitting Shape: Tee (Run x Run x Branch)
• Finish: Zinc Nickel-Plated
• Compatible Tube Material: Steel
• Maximum Operating Pressure: 125 psi
• Fitting Size: 1 in Pipe x 1 in Pipe x 1 in Pipe
• Country of Origin: Germany
• Technology: Smart Connect
• Port Connection Type: Press x Press x Press
