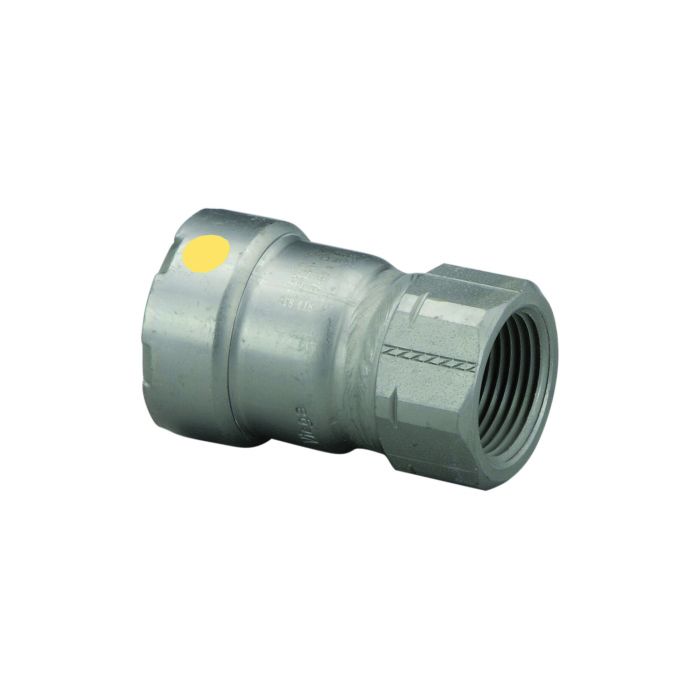

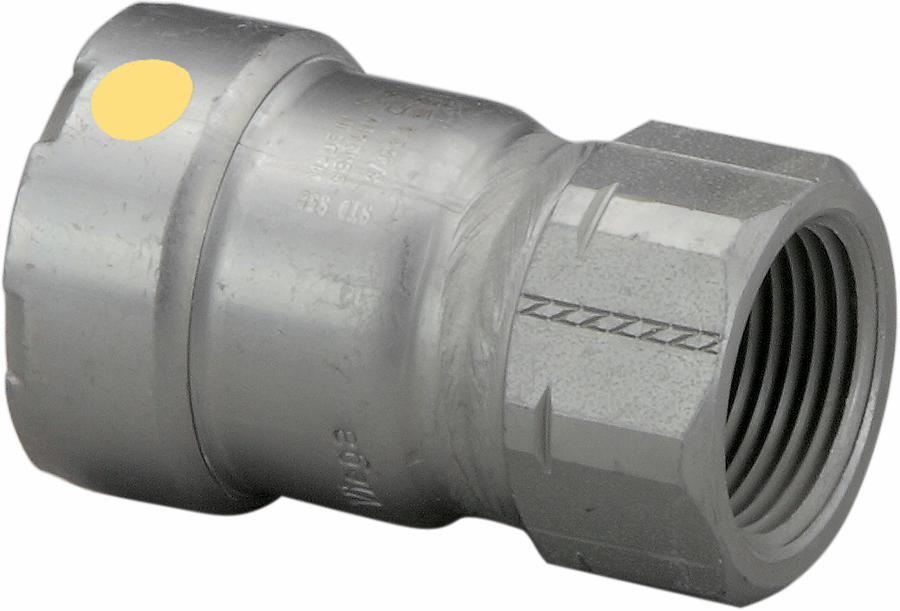

Megapress 25131 Adapter Pipe 1/2in PRS x FNPT

Product Description

The MEGAPRESS 25131 Pipe Adapter is a carbon steel fitting designed for gas applications, compatible with Schedule 5 to Schedule 40 black iron pipe. This 1/2 inch Press x FNPT adapter features a zinc nickel plated finish and an HNBR O-ring, suitable for air, fuel, and natural gas. It operates within a temperature range of -40°F to 180°F and handles up to 125 psi.

• Makes secure press connections in less than seven seconds
• No oil or heavy threading equipment needed
• Patented Viega Smart Connect® feature

Product Highlights

Carbon steel adapter for gas applications with quick press connections.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25131
• Country of Origin: Germany

Technical Specifications

• Manufacturer: VIEGA
• Fitting Type: Female Adapter
• Material: Carbon Steel
• Length: 2.29 in
• Nominal Size: 1/2 in
• Operating Temperature: -40 to 180 deg F
• Connection Type: Press x FNPT
• Connection Size: 1/2" x 1/2"
• Series: MegaPressG
• Finish: Zinc Nickel Plated
• Application: Air, Fuel, Natural Gas
• Max Operating Pressure: 125 psi
• O-Ring Material: HNBR
• Resistance Properties: Chemical Resistant, Heat Resistant, Oil Resistant
• Fitting Shape: Straight Adapter
• Standards: ABS TYPE APPROVAL, ANSI LC4/CSA 6.32, CRN 0A14541.5 A/B, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO, IAPMO ANSI LC4/CSA 6.32, ICC, ICC-ES PMG-1036, IFGC, NFPA 54, NFPA 58
• Sub-Brand: VIEGA MEGAPRESSG
