Megapress 25041 Coupling 1 in Press (1 in)

Product Description

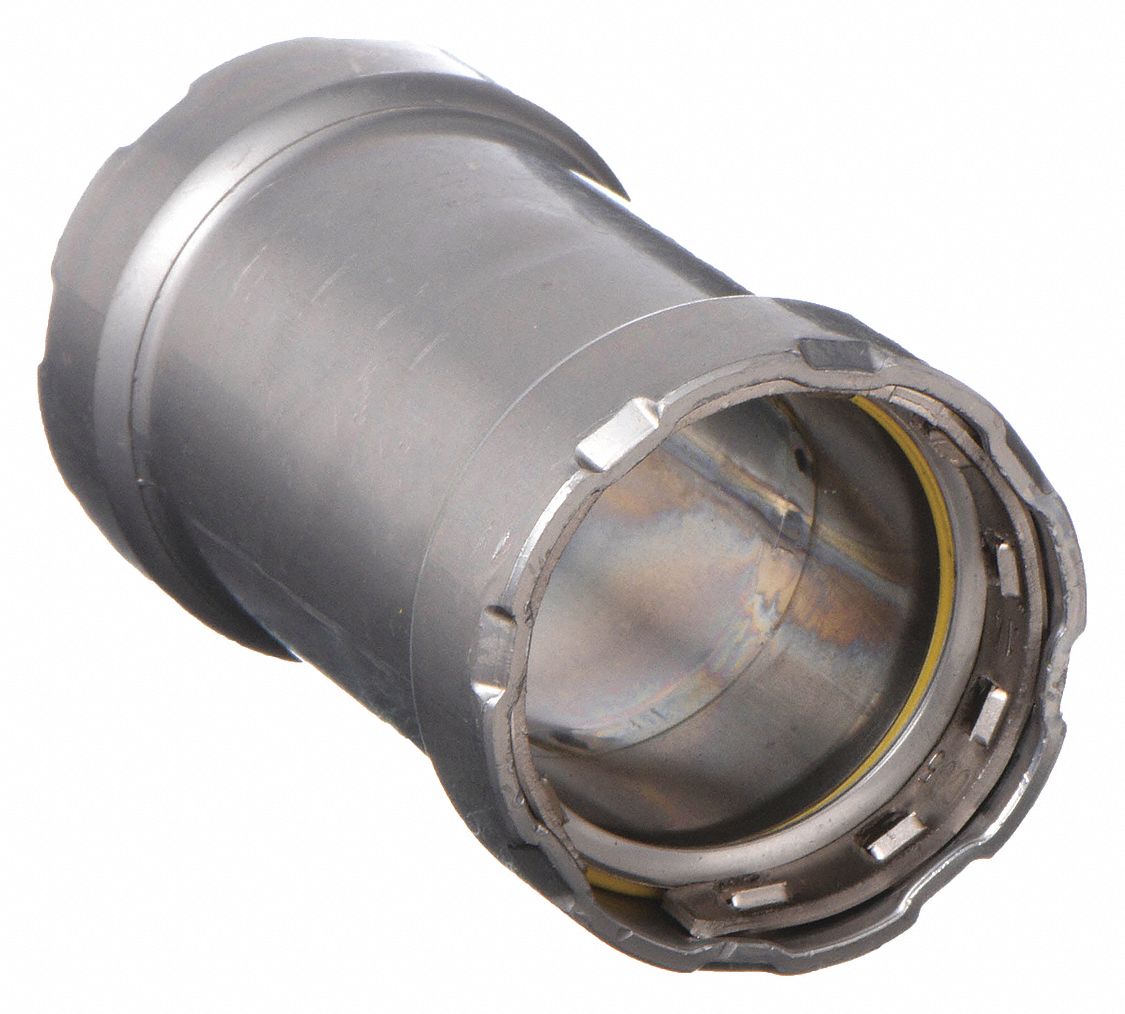

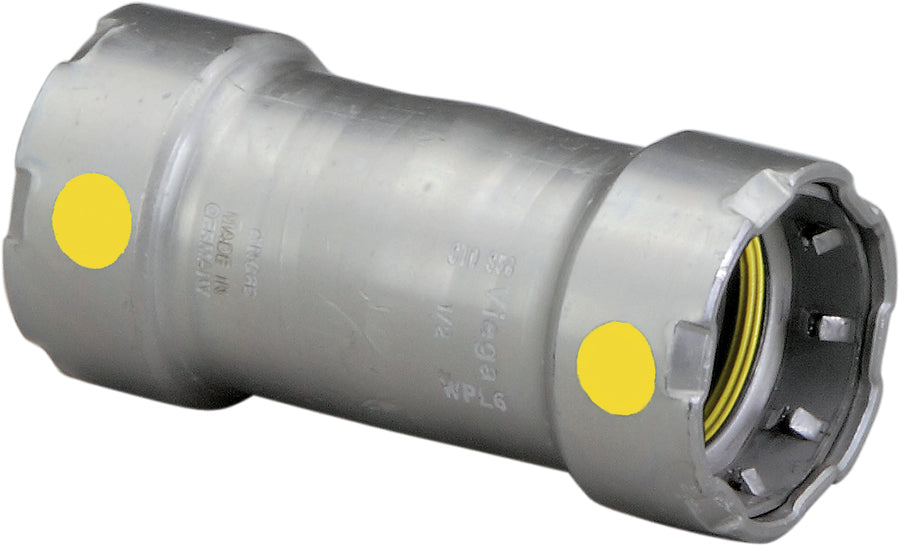

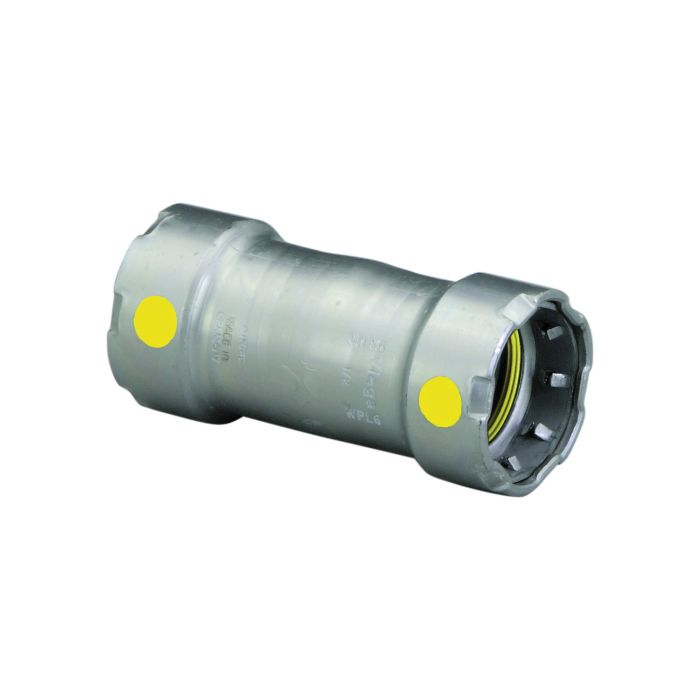

Megapress 25041 is a carbon steel press coupling designed for 1 in nominal pipe and intended for gas applications. The fitting uses a press end style and Viega Smart Connect indication to verify press-fit joints, allows wet or dry connections, and fits Schedule 5 to Schedule 40 black iron pipe. Rated for -40 to 180 °F, the coupling reduces the need for cutting oils and heavy threading equipment during installation.

• Press-fit coupling for 1 in nominal pipe with press x press connections and no stop
• Viega Smart Connect feature for visual verification; connections can be made wet or dry
• Carbon steel construction, fits Schedule 5 to Schedule 40 black iron pipe; temperature range -40 to 180 °F

Product Highlights

Carbon steel 1 in press coupling with Viega Smart Connect, no-stop press x press design, compatible with Schedule 5–40 black iron pipe and wet or dry installation.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25041
• Country of Origin: Import

Technical Specifications

• Brand: MEGAPRESS
• Manufacturer: Viega
• MPN: 25041
• Product Type: Coupling
• Connection Type: Press x Press (P x P)
• Nominal Size: 1 in
• End Style: Press
• Material: Carbon steel
• Sealing Material: HNBR
• Stop: Without stop (no stop)
• Temperature Rating: -40 to 180 °F
• Maximum Operating Pressure: 125 psi
• Compatible Pipe Schedule: Schedule 5 to Schedule 40 black iron pipe
• Smart Connect: Viega Smart Connect (visual inspection indication)
• Finish/Coating: Zinc nickel-plated
• Overall Dimensions (L x W x H): 3.25 x 1.25 x 1.25 in
• Weight: 0.51 lb
• Applications: Gas applications (fuel gas); suitable for press-fit gas piping systems
• UPC: 691514250410
