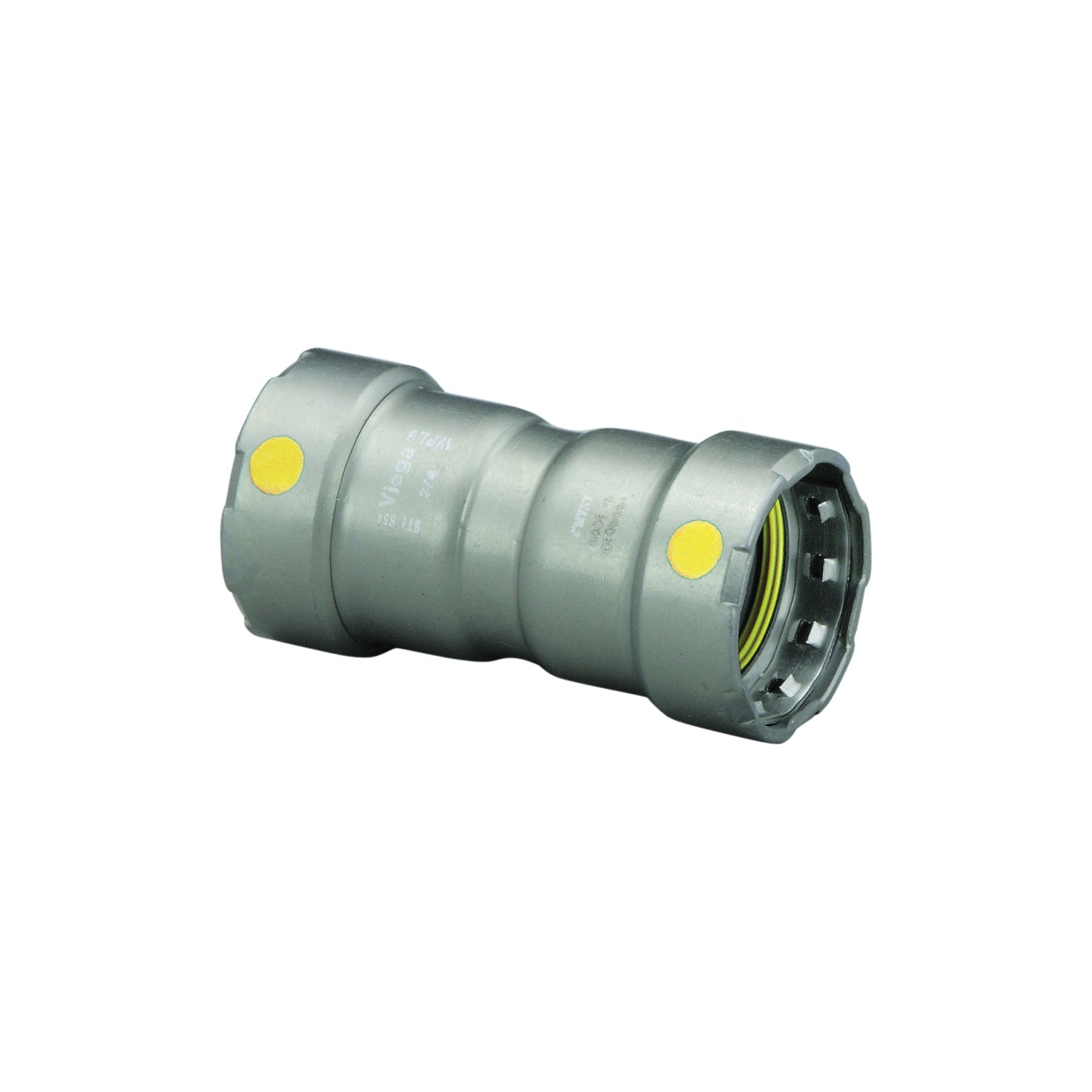

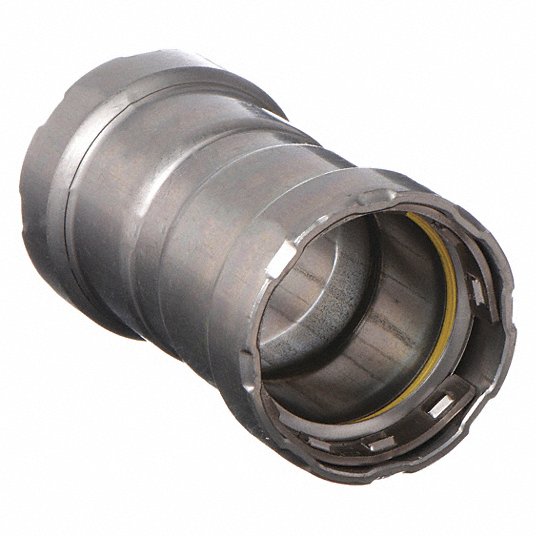

Megapress 25026 Coupling Pipe 2in

Product Description

The MEGAPRESS 25026 Pipe Coupling is a carbon steel fitting designed for gas applications. This 2-inch nominal coupling features a press end style, facilitating quick and secure connections in less than seven seconds. It is suitable for Schedule 5 to Schedule 40 black iron pipe, eliminating the need for messy cutting oils and heavy threading equipment. The coupling operates within a temperature range of -40 to 180 deg F and has a length of 4.71 inches.

• Makes secure press connections in less than seven seconds
• No oil or heavy threading equipment needed
• Patented Viega Smart Connect® feature

Product Highlights

Carbon steel press coupling for gas applications, featuring quick installation and Smart Connect technology.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25026
• Country of Origin: Germany

Technical Specifications

• Manufacturer: VIEGA
• Product Type: Coupling
• End Style: Press
• Material: Carbon Steel
• Nominal Size: 2 in
• Operating Temperature: -40 To 180 deg F
• Length: 4.71 in
• Brand: MEGAPRESS
• Series: MegaPressG
• Connection Type: P x P
• Seal Material: HNBR
• Includes: HNBR Sealing Element (Yellow Dot)
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
• Domestic/Import: Import
• Country of Origin: Germany
• Standards: ABS Listed | ANSI LC4/CSA 6.32 | ASME B31 | CRN OA14541.6 | CSA B149.1 | FM 1920 | GL Listed | LR Certified | NFPA 13/13D/13R/31/54/58
• Technology: Smart Connect
• Width: 2.25 in
• Height: 2.25 in
• Fitting Shape: Straight with Rolled Center Stop
• Finish: Zinc Nickel-Plated
• Maximum Operating Pressure: 125 psi
