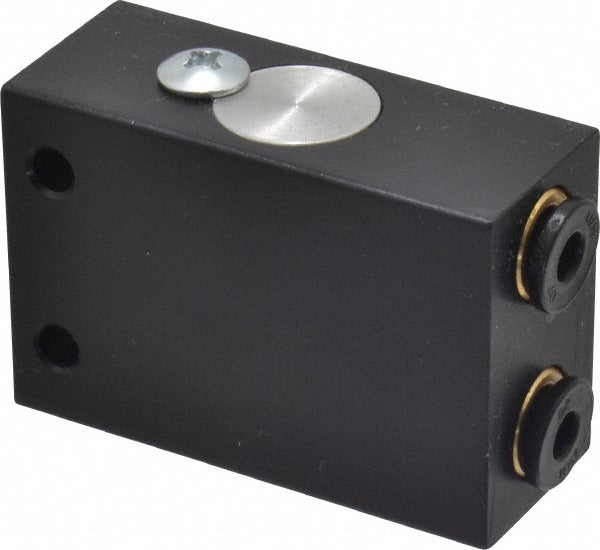

Mead USV-100 Binary Air Valve 3 Position 3 Port

Product Description

The MEAD USV-100 is a binary-actuated, 3-position, 3-port pneumatic air valve designed for precise directional control of compressed air in automated systems. Operating within a pressure range of 35 to 100 psi and a temperature range of 10 degrees F to 120 degrees F, this valve delivers repeatable positioning with a Cv rating of 0.11. Its binary actuator design allows the valve to shift between defined positions in response to pneumatic or electrical control signals. The USV-100 is compact and lightweight at 0.25 pounds, making it well-suited for integration into tight control assemblies and panel-mounted pneumatic circuits.

This valve is used in light industrial and commercial applications where compressed air must be directed through multiple circuit paths with discrete positional control. Typical installations include pneumatic control panels, automated process equipment, and HVAC pneumatic control systems where 3-port binary operation is required. It is installed and serviced by instrumentation technicians, controls specialists, and licensed HVAC mechanics working on pneumatic control systems.

Key Features

• Binary actuator type for discrete, repeatable positional control
• 3-position, 3-port configuration for multi-path air circuit routing
• Operating pressure range: 35 to 100 psi
• Cv rating of 0.11 for controlled flow in compact circuits
• Temperature rated from 10 degrees F to 120 degrees F (-12 degrees C to 49 degrees C)
• Lightweight at 0.25 pounds for easy panel integration

Compatibility

Designed as an OEM-style replacement or direct-fit component for pneumatic control systems requiring a 3-position, 3-port binary air valve with a 35 to 100 psi working pressure range.

Installation Notes

Installation should be performed by a qualified instrumentation technician or licensed HVAC mechanic familiar with pneumatic control systems. Depressurize the system completely before removing or installing any valve components. Verify that supply pressure falls within the 35 to 100 psi operating range before commissioning. Follow applicable local codes and manufacturer guidelines for pneumatic control circuit assembly.
