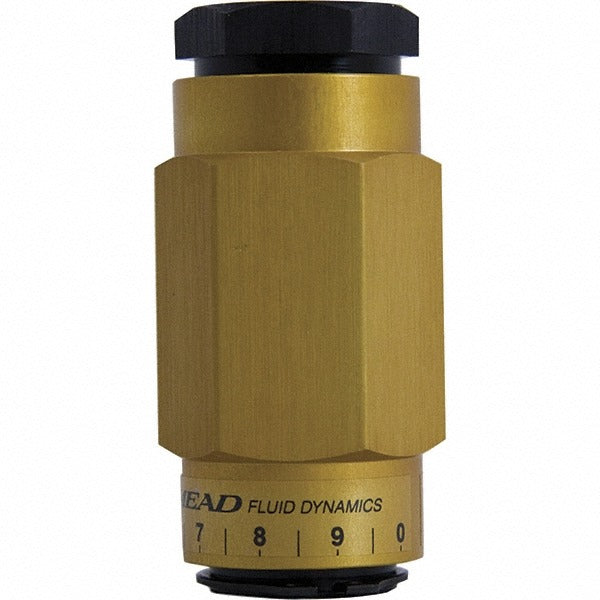

Mead MF1-37 Air Flow Control Valve Threaded Nptf 3/8

Product Description

The MEAD MF1-37 is a threaded air flow control valve designed for pneumatic systems requiring precise airflow regulation at connection points. Built with an aluminum body and NPTF (National Pipe Taper Fuel) threaded connections, this valve provides a leak-resistant interface between air supply lines. The 3/8-inch male inlet and 3/8-inch female outlet allow for straightforward inline installation. Rated for service down to -40 degrees F, it is suited for use in cold environments where standard valves may not perform reliably. HVAC technicians, industrial maintenance professionals, and pneumatic system installers are the typical end users for this type of valve.

The MF1-37 fits into pneumatic control circuits commonly found in commercial HVAC systems, industrial automation equipment, and compressed air distribution lines. Its NPTF thread design ensures a pressure-tight seal without requiring additional sealant tape on properly mated fittings, though standard shop practice is to apply thread sealant per system requirements. The all-aluminum body keeps the valve lightweight while offering adequate corrosion resistance for most dry compressed air applications.

Key Features

• Aluminum body construction for lightweight, corrosion-resistant service
• NPTF threaded connections on both male and female ports for a leak-resistant seal
• 3/8-inch male inlet and 3/8-inch female outlet for direct inline installation
• Rated for minimum working temperature of -40 degrees F, suitable for cold-environment applications
• Compact form factor for installations with limited clearance

Compatibility

Designed as an OEM-style replacement or direct-fit addition for pneumatic systems using 3/8-inch NPTF threaded air line connections.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic systems. Depressurize and lock out the compressed air supply before removing any existing valve or fitting. Apply thread sealant or PTFE tape per your facility or system specification when making up NPTF connections. Verify flow direction and torque connections to fitting manufacturer standards for the port size and material.
