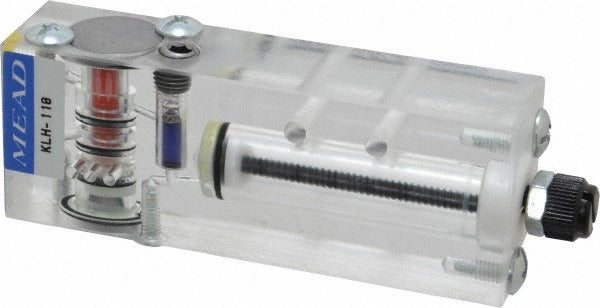

Mead KLH-110 Delayed Air Timer Valve 3 Position 1/8 in

Product Description

The MEAD KLH-110 is a 3-position delayed air timer valve designed for pneumatic control circuits that require timed actuation sequences. It features a 1/8-inch inlet port and a Cv rating of 0.120, making it suited for low-flow pneumatic timing applications. The valve operates within a working pressure range of 50 to 150 psi and handles temperatures from 50 degrees F to 120 degrees F. Licensed pneumatic systems technicians and industrial maintenance professionals typically install this component in automated equipment, process control panels, and compressed air systems where sequenced valve timing is required.

The KLH-110 is applied in pneumatic control systems where a delayed signal is needed before downstream actuation occurs. Its compact 1/8-inch inlet size fits standard pneumatic manifold and tubing configurations common in light industrial and automation environments. The 3-position valve arrangement allows for precise control states within a timed pneumatic circuit, making it appropriate for sequential machine operations and automated process lines that rely on air-driven timing logic.

Key Features

• 3-position delayed air timer valve for sequenced pneumatic actuation
• 1/8-inch inlet port fits standard pneumatic fittings and manifolds
• Cv rating of 0.120 for controlled low-flow pneumatic circuits
• Operating pressure range of 50 to 150 psi
• Temperature range of 50 degrees F to 120 degrees F (10 degrees C to 49 degrees C)

Compatibility

Designed as an OEM-style replacement for 3-position delayed air timer valves with 1/8-inch inlet connections in standard pneumatic control and automation systems.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance professional. Depressurize and lock out the compressed air supply before removing or installing any pneumatic valve. Verify that the system operating pressure remains within the 50 to 150 psi range before commissioning. Consult applicable local codes and equipment manufacturer documentation for proper plumbing and sequencing requirements.
