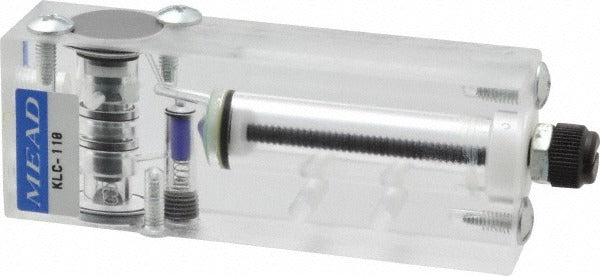

Mead KLC-110 Delayed Air Timer Valve 3 Position 1/8 in

Product Description

The MEAD KLC-110 is a three-position delayed air timer valve designed for pneumatic control circuits in industrial and commercial automation applications. It regulates the timing of compressed air flow, introducing a controlled delay before air passes through the circuit. The valve features a 1/8 inch inlet port, a Cv rating of 0.120, and a working pressure range of 50 to 150 psi. It is installed by pneumatic system technicians, maintenance mechanics, and automation specialists working with air-actuated controls, sequencing circuits, or time-delay logic in process equipment.

The KLC-110 is suited for use in compressed air systems that require timed valve actuation or sequenced pneumatic logic. Typical applications include machine tool automation, assembly line controls, and pneumatic panel systems operating within standard shop-air pressure ranges. Its compact form factor and 1/8 inch port size make it a practical fit for space-constrained pneumatic control panels and inline timer circuits.

Key Features

• Three-position delayed air timer valve for pneumatic sequencing and time-delay control circuits
• 1/8 inch inlet port for compatibility with standard pneumatic fittings and tubing
• Cv rating of 0.120 for controlled, low-flow pneumatic circuit applications
• Operating pressure range of 50 to 150 psi covers standard shop-air supply systems
• Working temperature range of 50 to 120 degrees F (10 to 49 degrees C) suitable for typical indoor industrial environments

Compatibility

Designed as an OEM-style replacement or new-installation component for pneumatic control systems using 1/8 inch port connections and compressed air supplies operating between 50 and 150 psi.

Installation Notes

Installation should be performed by a qualified pneumatic technician or maintenance mechanic familiar with compressed air system safety. Depressurize the pneumatic circuit completely before removing or installing any valve. Verify that line pressure and temperature at the installation point fall within the rated ranges before placing the valve into service. Follow applicable OSHA and equipment manufacturer guidelines for pneumatic component service.
