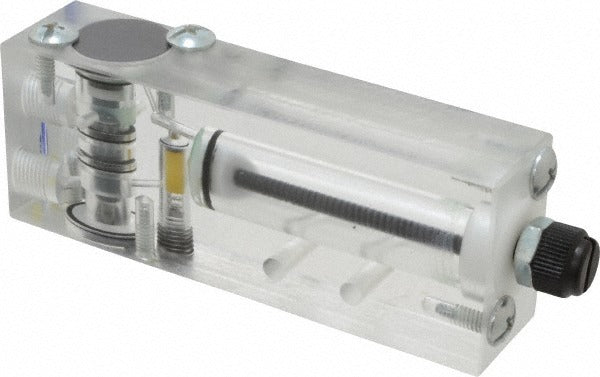

Mead KLC-105 Delayed Air Timer Valve 3 Position 1/8 Inch

Product Description

The MEAD KLC-105 is a delayed air timer valve designed for pneumatic control circuits that require timed actuation with a 3-position configuration. It features a 1/8 inch inlet port and a Cv rating of 0.12, making it suited for low-flow timing applications in industrial and automated systems. Operating pressure ranges from 50 to 150 psi, with a working temperature range of 50 to 120 degrees F. This valve is typically installed by instrumentation technicians, industrial mechanics, or pneumatic control specialists integrating timing functions into air-operated equipment.

The KLC-105 is intended for use in pneumatic circuits where a delayed switching action is required. Common install scenarios include machine automation panels, sequencing systems, and air logic control assemblies operating within standard plant air supply conditions. Its compact form factor and standard 1/8 inch NPT inlet allow straightforward integration into existing pneumatic manifolds or inline plumbing arrangements.

Key Features

• 3-position delayed air timer valve for pneumatic timing and sequencing applications
• 1/8 inch inlet port size for direct integration with standard pneumatic fittings
• Cv rating of 0.12 suited for controlled low-flow air circuits
• Operating pressure range: 50 to 150 psi
• Working temperature range: 50 to 120 degrees F (10 to 49 degrees C)

Compatibility

Designed as an OEM-style replacement or new-installation component for pneumatic control circuits requiring a 3-position delayed air timer valve with a 1/8 inch inlet and 50 to 150 psi operating pressure range.

Installation Notes

Installation should be performed by a qualified instrumentation technician or industrial mechanic familiar with pneumatic control systems. Depressurize and lock out the air supply before removing or installing any pneumatic valve. Verify that system operating pressure and temperature remain within the rated limits of this valve before placing it in service. Follow applicable plant safety procedures and any relevant pneumatic system codes during installation.
