Mckinney Hinges QCC1500P Wire Harness 12 Wires

Product Description

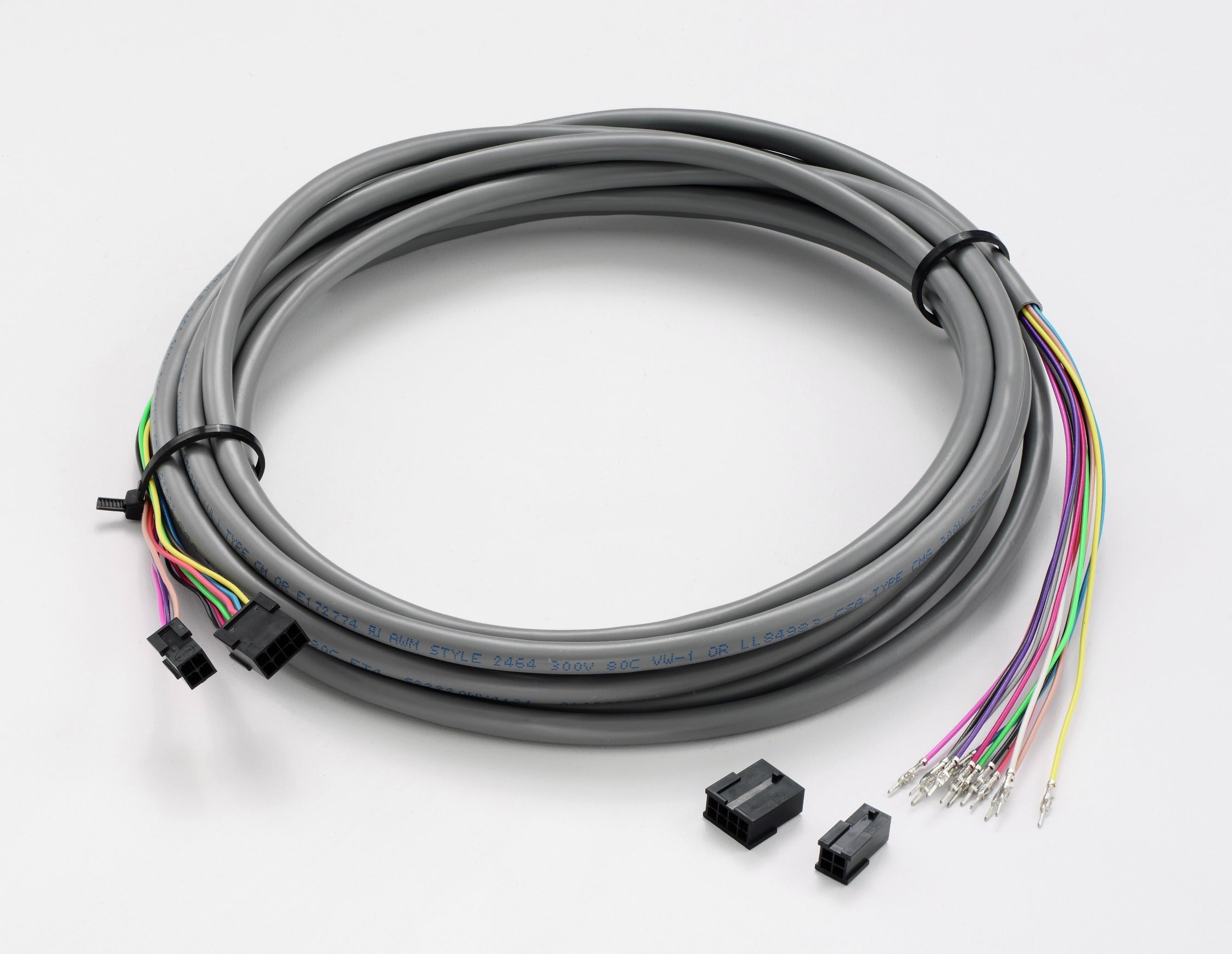

The MCKINNEY HINGES QCC1500P is a wire harness assembly designed for use with electrified door hinges in commercial access control and security systems. The harness includes 12 individual wires and terminates with both an 8-pin and a 4-pin connector, providing a reliable interface between the door frame and the electrified hinge. At approximately 15 feet 2 inches in length, this harness accommodates standard commercial door frame routing without splicing. Installation is typically performed by a licensed electrician or low-voltage systems technician during new construction or retrofit of electrified hardware assemblies.

This wire harness is used in commercial door openings where electrified hinges carry power or signal to electric strikes, electromagnetic locks, access control readers, or door position switches. It is suited for applications requiring a clean, concealed wiring path through the door frame. The dual-connector configuration supports systems where separate circuits are needed for power and data or control signals.

Key Features

• 15 feet 2 inches total harness length for flexible routing in commercial door frames
• 12-wire construction supports multiple circuit paths within a single harness
• Dual connector termination: 8-pin and 4-pin connectors included
• Designed for use with electrified hinge assemblies in commercial openings
• Sold as a single unit (EA) for straightforward replacement or new installation

Compatibility

Designed as an OEM-style replacement wire harness for commercial electrified hinge systems requiring a 12-wire harness with 8-pin and 4-pin connector terminations.

Installation Notes

Installation should be performed by a qualified electrician or low-voltage technician familiar with access control hardware. De-energize all circuits at the power supply or control panel before disconnecting or connecting any harness. Route the harness through the door frame chase or raceway to avoid pinching or abrasion at the hinge pivot point. Follow applicable NEC requirements for low-voltage wiring in commercial door frame assemblies.
