McGill MCFR 26 SX Crowned & Flat Cam Followers - Metric CAMROL (MCF) Series

Product Description

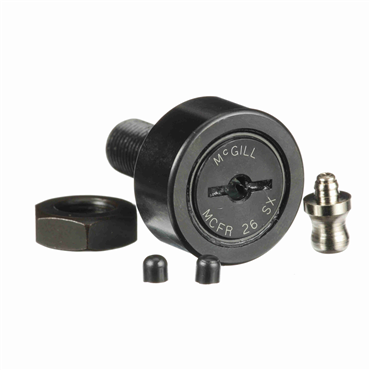

The McGill MCFR 26 SX is a crowned and flat cam follower from the Metric CAMROL (MCF) series designed for various applications. This product features a roller diameter of twenty-six millimeters and is constructed from bearing steel with a black oxide finish for enhanced durability. The cam follower is sealed to protect the internal components from contaminants.

• Metric stud type cam follower
• Cylindrical outside diameter
• Jam nuts and lube fitting included

Product Highlights

The MCFR 26 SX is ideal for applications requiring reliable motion and stability. It uses retained needle rollers for smooth operation.

Product Information

Standard Information

• Brand: McGill
• Part Number: 00124428

Technical Specifications

• Series: Metric CAMROL (MCF)
• Weight: 0.685 lbs
• Max Rpm: 13500 rpm
• Head Type: Screwdriver Slot
• Stud Type: MCF - Stud
• Thread Size: M10x1
• Closure Type: Sealed
• Roller Shape: Cylindrical
• Roller Width: 12 mm
• Roller Diameter: 26 mm
• Radial Static Load Capacity: 1360 lbf
• Radial Dynamic Load Capacity: 1169 lbf
