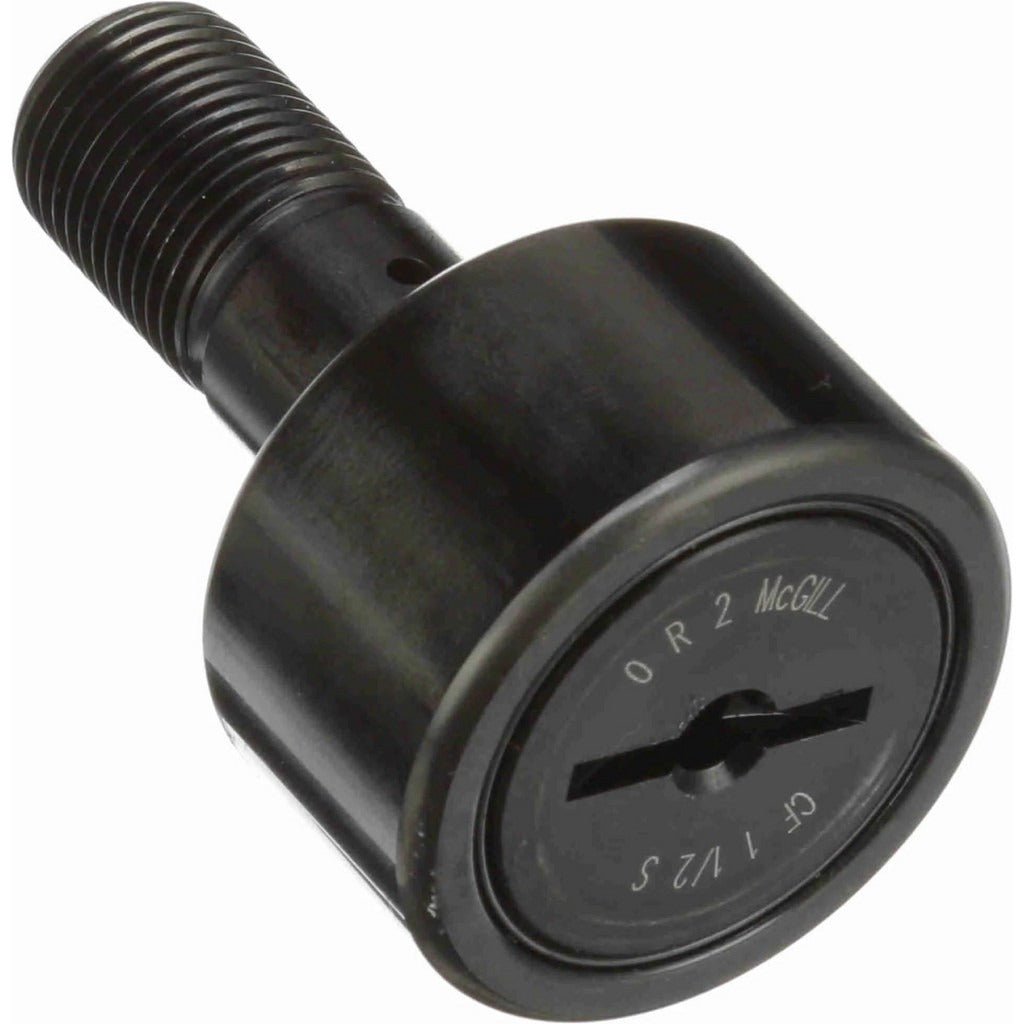

Mcgill 2140110000 Sealed Stud Cam Follower 1.5in Steel

Product Description

The MCGILL 2140110000 is a sealed stud-type cam follower with a cylindrical steel roller supported by a needle roller bearing. The roller measures 1.5 inches in diameter and 0.875 inches wide, mounted on a 0.625-inch stud with a 5/8-18 thread size and a stud length of 1.5 inches. Rated for a dynamic load capacity of 4,840 pounds and a static load capacity of 5,640 pounds, this follower is built for demanding motion-control and power-transmission applications. The sealed closure type protects the needle bearing from contamination, reducing maintenance intervals in industrial service environments. A slotted head style allows for standard installation tooling.

Cam followers of this type are used in industrial machinery where a rolling contact element tracks a cam or linear rail surface. Typical applications include conveyor systems, indexing mechanisms, packaging equipment, printing machinery, and general power-transmission assemblies. The cylindrical roller profile provides uniform load distribution across the raceway. This part is suited for both OEM machine builds and field replacement work performed by industrial maintenance technicians or mechanical contractors working on motion-control equipment.

Key Features

• Cylindrical steel roller, 1.5 inches diameter x 0.875 inches wide
• Needle roller bearing design supports high radial load capacity
• Dynamic load capacity: 4,840 pounds; static load capacity: 5,640 pounds
• Sealed closure type protects bearing from contamination and reduces relubrication needs
• 5/8-18 threaded stud with 0.75-inch thread length for secure mounting
• Slotted head type compatible with standard installation tooling
• Maximum rated speed of 2,500 RPM

Compatibility

Designed as an OEM-style replacement or direct-fit cam follower for industrial machinery requiring a sealed stud-type needle roller follower with a 1.5-inch cylindrical roller. McGill manufacturer part number CF 1-1/2 S corresponds to this component.

Installation Notes

Installation is typically performed by industrial maintenance technicians or mechanical assemblers familiar with power-transmission components. De-energize and lock out all machinery before removing or installing cam followers. Use a torque wrench and appropriate stud driver on the slotted head to secure the threaded stud; consult machine OEM documentation for fastener torque requirements. Verify that the replacement roller diameter, stud thread size, and load ratings match the original specification before installation.
