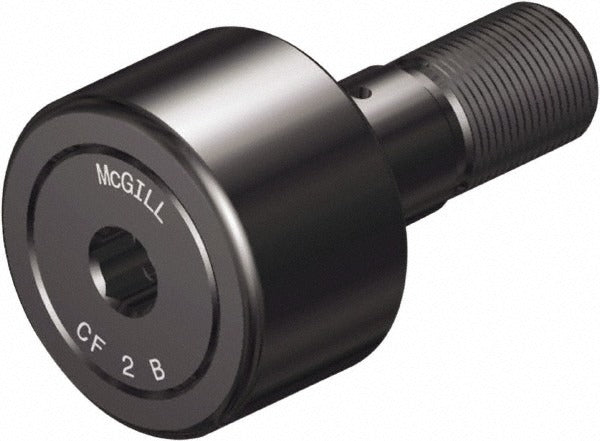

Mcgill 2080112000 Plain Cam Follower Needle Roller

Product Description

The MCGILL 2080112000 is a sealed stud-type cam follower with a hex socket, designed for use in industrial machinery and mechanical linkage systems where a rolling element must track along a cam or rail surface. The roller measures 0.875 inches in diameter and 0.5 inches in width, supported internally by a needle roller bearing assembly for high load capacity in a compact envelope. With a dynamic load rating of 1,660 pounds and a static load rating of 2,065 pounds, this cam follower is built for demanding linear and rotary motion applications. It is installed by maintenance technicians and mechanical assemblers working on cam-driven mechanisms.

This cam follower suits industrial and commercial machinery applications including indexing mechanisms, conveyor systems, and cam-actuated assemblies that require a threaded stud-mount roller. The stud diameter is 0.375 inches with a 3/8-24 thread and a thread engagement length of 0.375 inches. The full stud length is 0.875 inches. The sealed construction helps protect the needle roller bearing from contamination in moderate-duty environments where periodic lubrication access is limited.

Key Features

• Needle roller bearing internal design for high radial load capacity in a compact form factor
• Dynamic load capacity of 1,660 pounds and static load capacity of 2,065 pounds
• Sealed stud cam follower construction with hex socket for precise torque application during installation
• Steel roller and steel housing construction for durability in industrial service
• 3/8-24 threaded stud with 0.375 inches of thread engagement for secure fastening
• Roller diameter of 0.875 inches and roller width of 0.5 inches for consistent cam surface contact

Compatibility

Corresponds to McGill part number CF 7/8 SB. Designed as an OEM-style replacement cam follower for industrial machinery requiring a 7/8-inch stud-type needle roller cam follower with a 3/8-24 threaded stud.

Installation Notes

Installation is performed by qualified maintenance technicians or mechanical assemblers. De-energize and lock out all power and motion sources before servicing any cam-driven mechanism. Use a properly sized hex key or socket to engage the hex recess in the stud end when threading the cam follower into the mounting bore, ensuring the stud is drawn down squarely to avoid cross-threading. Verify that the selected replacement cam follower load ratings meet or exceed the application requirements before returning equipment to service.
