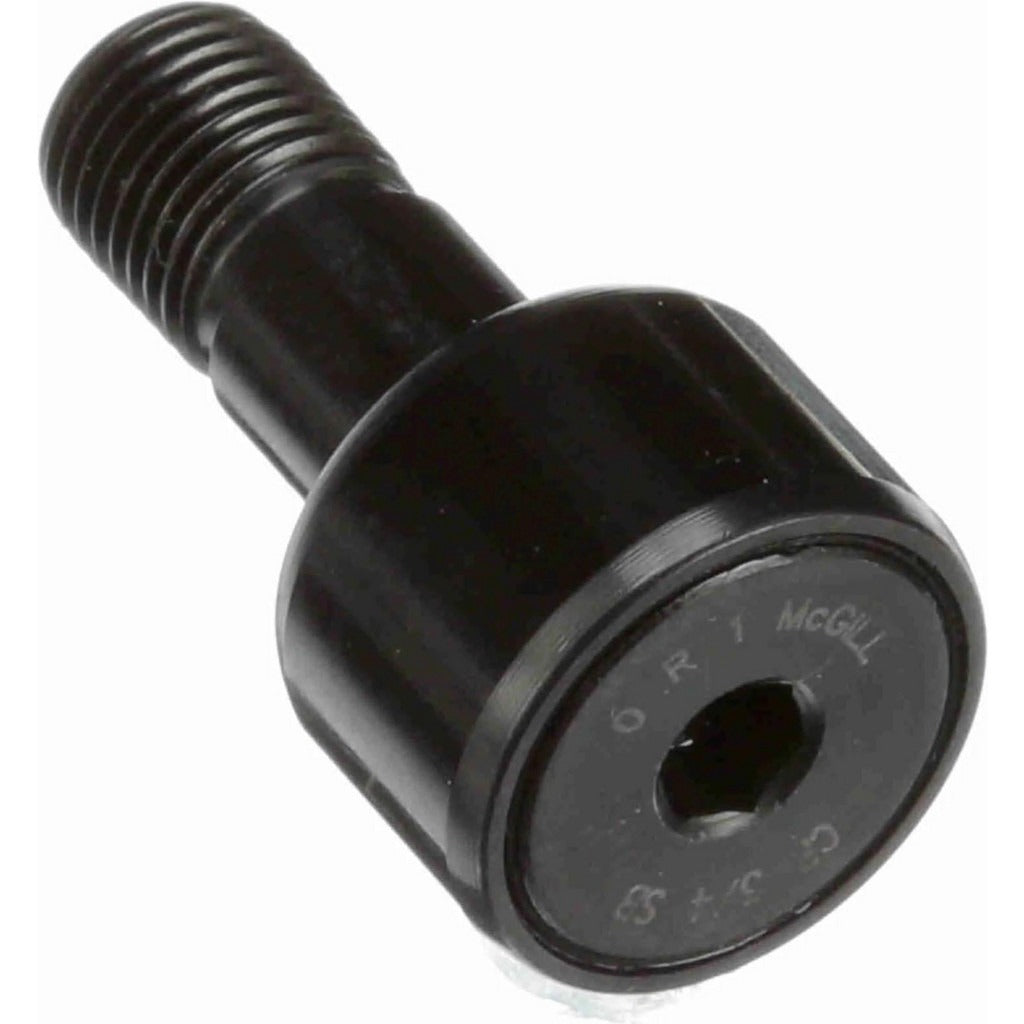

Mcgill 2060112000 Sealed Stud Cam Follower 0.75in

Product Description

The MCGILL 2060112000 is a sealed stud-type cam follower designed for use in linear and rotary motion applications where a rolling element must track a cam surface or guide rail. This unit features a 0.75-inch cylindrical steel roller supported by a needle roller bearing, mounted on a 0.375-inch stud with a 3/8-24 thread. The sealed construction keeps lubricant in and contaminants out, extending service life in industrial environments. It carries a dynamic load capacity of 1,660 pounds and a static load capacity of 2,065 pounds. Installation is typically performed by maintenance mechanics and industrial equipment technicians.

This cam follower is suited for industrial machinery, conveyor systems, cam-driven mechanisms, and equipment requiring precise rolling contact against a track or plate surface. The hex head stud allows direct installation with standard wrenches. At a maximum rated speed of 6,400 RPM, this follower handles moderate-speed applications in both OEM and MRO contexts. The compact form factor makes it appropriate for space-constrained assemblies in manufacturing, packaging, and material-handling equipment.

Key Features

• Cylindrical steel roller, 0.75 inches in diameter and 0.5 inches wide
• Needle roller bearing design supports high radial loads in a compact envelope
• Sealed closure retains grease and excludes contaminants for extended service life
• Hex head stud enables installation and removal with standard hand tools
• 3/8-24 threaded stud, 0.375 inches in diameter, 0.875 inches in stud length with 0.375 inches of thread length
• Rated to 6,400 RPM maximum for moderate-speed cam and track applications

Compatibility

This part is also referenced under McGill part number CF 3/4 SB. Designed as an OEM-style replacement or direct substitution for sealed stud cam followers with matching stud diameter, thread size, and roller geometry in industrial motion applications.

Installation Notes

Installation and replacement of cam followers is typically performed by qualified maintenance mechanics or industrial equipment technicians. Shut down and de-energize all equipment and relieve any mechanical tension before removing or installing a cam follower. Use the hex head stud with a calibrated torque wrench and follow the equipment manufacturer's torque specifications for the fastener. Inspect the mating cam surface or track for wear or damage before installing the new follower.
