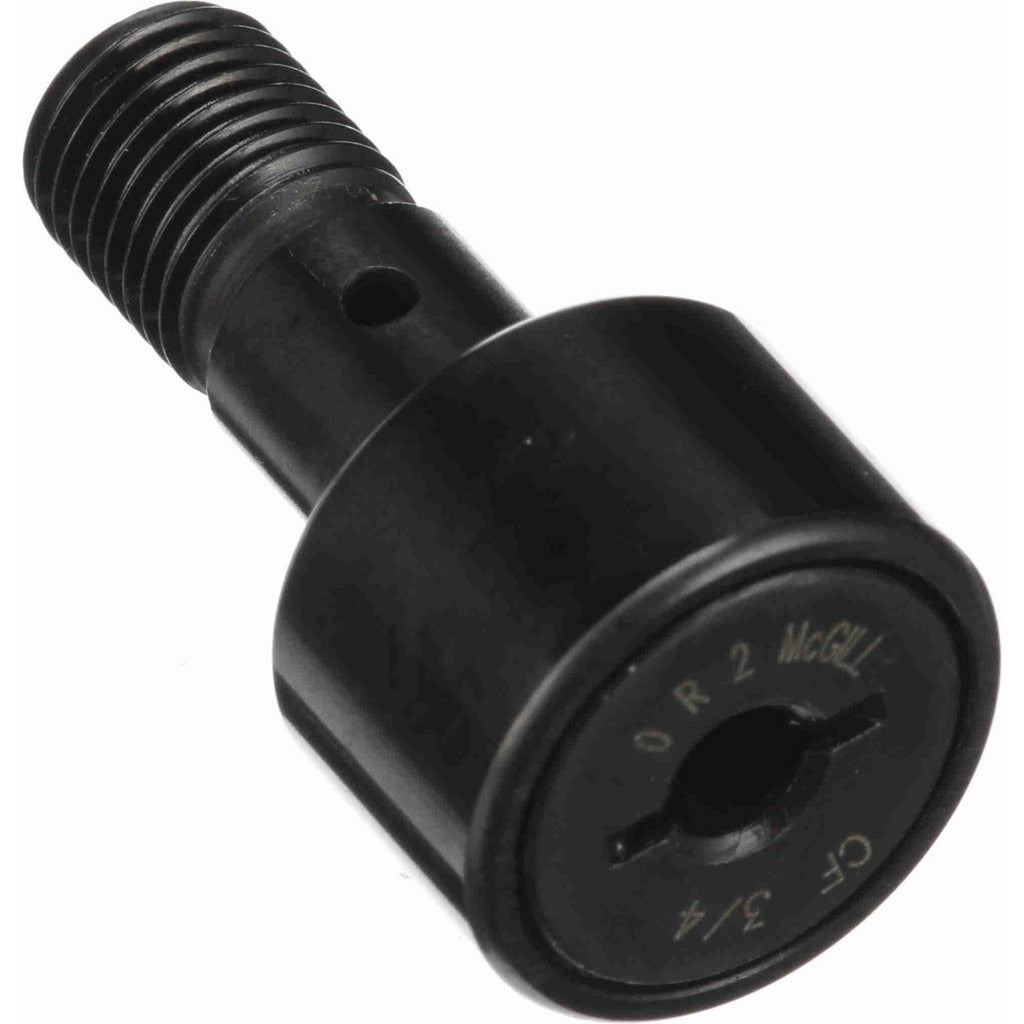

Mcgill 2060100000 Stud Cam Follower 0.75in Roller

Product Description

The MCGILL 2060100000 is a stud-type cam follower designed for use in track-following and linear-motion applications where a needle roller bearing provides high load capacity in a compact form factor. The roller measures 0.75 inches in diameter and 0.5 inches in width, with a cylindrical profile suited to flat or contoured cam tracks. The stud diameter is 0.375 inches with a 3/8-24 thread size and a 0.375-inch thread length, giving the assembly a total stud length of 0.875 inches. Dynamic load capacity is rated at 1,660 pounds, and static load capacity reaches 2,065 pounds. This part is typically installed by mechanical maintenance technicians and machine builders working on industrial equipment.

The 2060100000 fits applications involving cam-and-follower mechanisms, conveyor systems, indexing equipment, and general industrial machinery where a stud-mounted roller is required to track a cam surface or guide rail. The unsealed construction is appropriate for controlled environments where the follower can be serviced and lubricated as part of a regular maintenance schedule. Maximum rated speed is 6,400 RPM. The McGill factory part number cross-reference for this bearing is CF 3/4.

Key Features

• Needle roller bearing type provides high radial load capacity relative to size
• Cylindrical steel roller, 0.75 inches diameter by 0.5 inches wide
• 3/8-24 threaded stud with 0.375-inch thread engagement length
• Dynamic load capacity: 1,660 pounds (7,384 N)
• Static load capacity: 2,065 pounds (9,185 N)
• Maximum speed: 6,400 RPM
• Slotted head type for installation with standard screwdriver or spanner

Compatibility

This cam follower corresponds to McGill part number CF 3/4. Designed as a stud-type needle roller cam follower for industrial machinery, conveyor, and motion-control applications requiring a 3/8-24 stud mount with a 0.75-inch cylindrical roller.

Installation Notes

Installation is performed by mechanical technicians. De-energize and lock out all power and motion sources on the machine before removing or installing the cam follower. Thread the stud into the mounting bore by hand first to avoid cross-threading, then torque to the specification listed in the original equipment service documentation. The unsealed design requires periodic relubrication according to the OEM maintenance schedule and operating environment.
