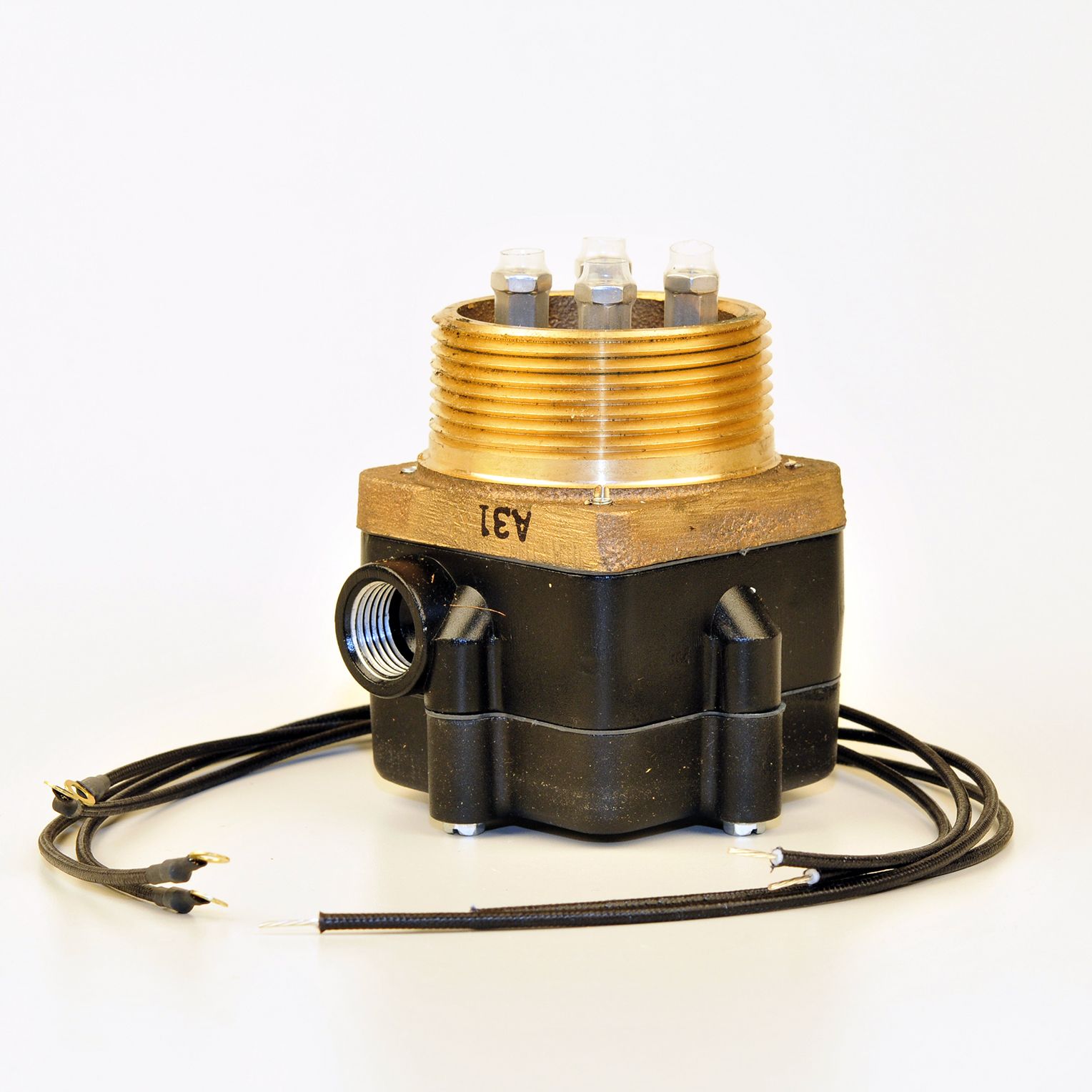

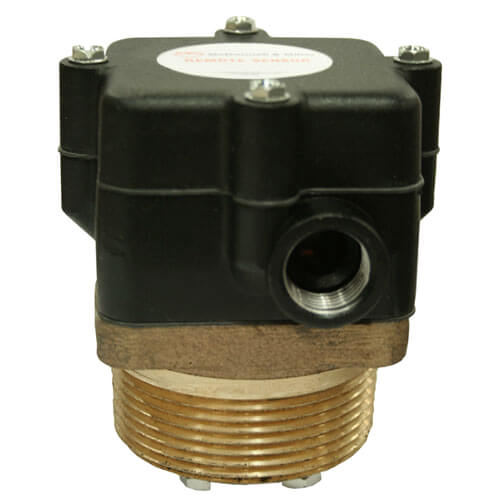

McDonnell & Miller 179527 Model RS-4-BR-1 - Remote Sensor

Product Description

McDonnell & Miller model number RS-4-BR-1 is a remote sensor used for four-level control systems. It is compatible with 750 series LPC-2000, PCH, and PCL liquid level control units. This device operates effectively within a maximum water temperature of four hundred six degrees Fahrenheit. It can handle water and steam pressure up to two hundred fifty psi. The P series probes needed for this unit must be ordered separately based on length.

• Remote sensor for 4 level control (1 IPM)
• Compatible with LPC-2000 and other McDonnell & Miller units
• Maximum operating temperature of 406°F

Product Highlights

This remote sensor is ideal for applications needing precise level control in hot water and steam boilers.

Product Information

Standard Information

• Brand: McDonnell & Miller
• Model: RS-4-BR-1

Technical Specifications

• MPN: 179527
• UPC: 751875005491
• Application: Hot Water Boilers, Steam Boilers
• Voltage: 120V, 240V
• Enclosure: NEMA 4X
• Connection Size: 2-1/2 inches
• Control Connection: NPT
• Max Temperature: 406°F
• Max Steam Pressure: 250 psi
• Max Water Pressure: 250 psi
• Probe Quantity: 4
• Ohms Sensitivity: 20,000 ohm
• Weight: 4.00 pounds
