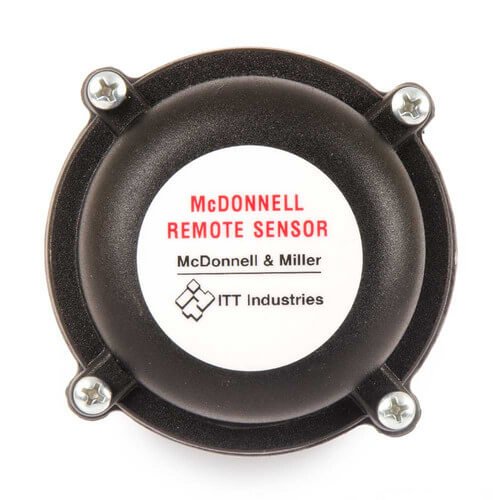

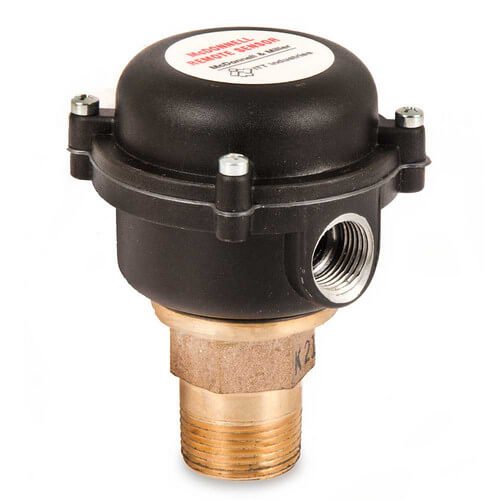

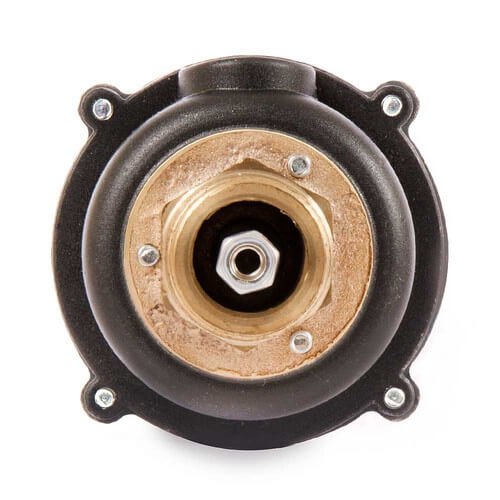

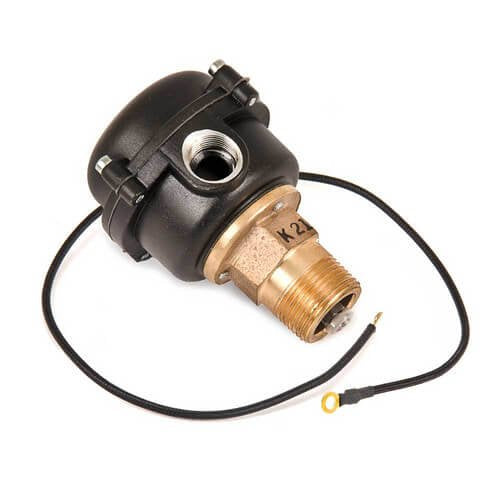

McDonnell & Miller 179524 RS-1-BR-1 Single Level Remote Sensor

Product Description

The McDonnell & Miller model number 179524 is a remote sensor designed for liquid level control in hot water and steam boilers. This sensor threads into the top of the boiler or tank, providing a reliable solution for monitoring water levels.

• Application: Actuation Control
• Max Pressure: 250 psig
• Max Temperature: 406 °F

Product Highlights

This sensor is ideal for use with the 750 series LPC-2000 or PCH and PCL liquid level control units. It is essential for applications where accurate monitoring of water levels is critical.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 179524

Technical Specifications

• Application: Hot Water Boilers, Steam Boilers
• Voltage: 120V, 240V
• Enclosure: NEMA 4X
• Connection Size: 1 inch
• Control Connection: NPT
• Max Temp: 406 °F
• Max Steam Pressure: 250 psi
• Max Water Pressure: 250 psi
• Probe Quantity: 1
• Ohms Sensitivity: 20,000 ohm
• Weight: 1.61 lbs
