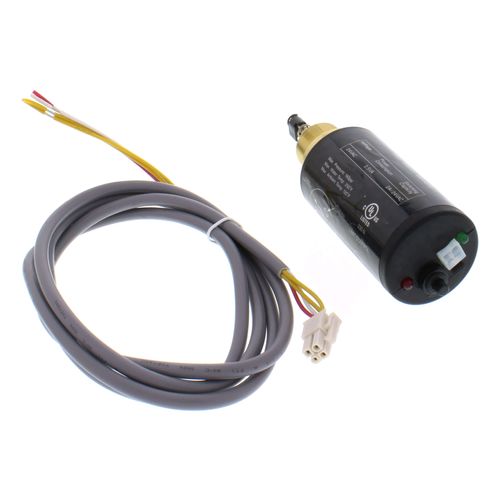

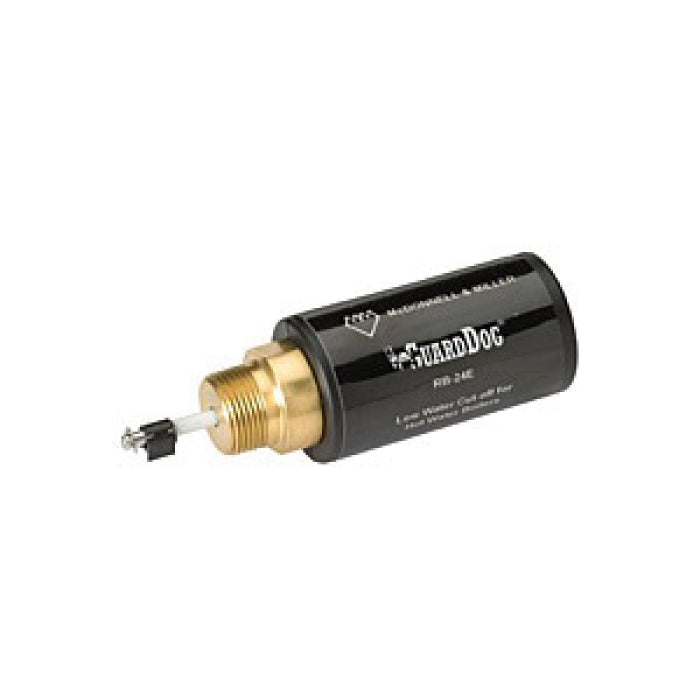

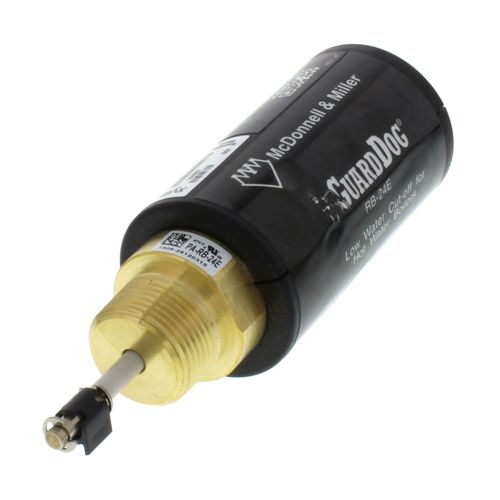

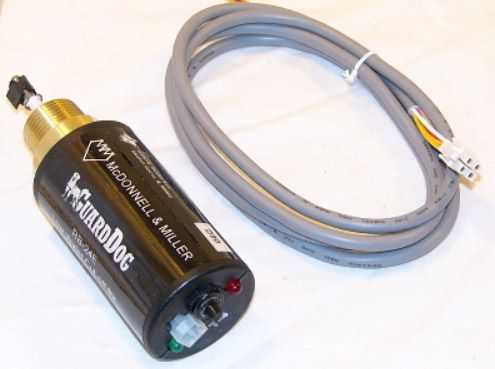

McDonnell & Miller 144692 RB-24E Electronic Low Water Cut-Off - 24V

Product Description

The McDonnell & Miller 144692 is an electronic low water cut-off device designed specifically for hot water boilers. This unit operates at 24 VAC and features a maximum pressure rating of 160 psi. With an automatic reset function, it ensures reliability in maintaining water levels and preventing overheating.

• Electronic low water cut-off for effective monitoring
• Automatic reset feature for convenience
• Suitable for use in residential hot water boilers

Product Highlights

This low water cut-off offers brass threads for a secure, leak-free installation. The patented self-cleaning probe minimizes maintenance needs, extending the cleaning interval to five years. Its compact size allows for easy installation and wiring.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 144692

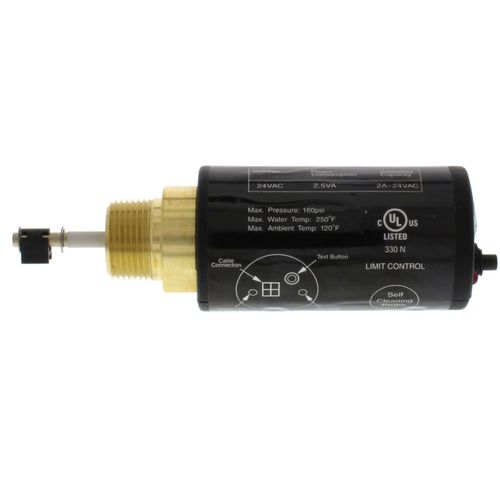

Technical Specifications

• Connection Type: NPT
• Length: 5-3/4 in
• Width: 1-7/8 in
• Power Rating: 2.5 VA
• Pressure Rating: 160 psi
• Temperature Rating: 120 deg F
• Thread Size: 3/4 in
• Voltage Rating: 24 VAC
