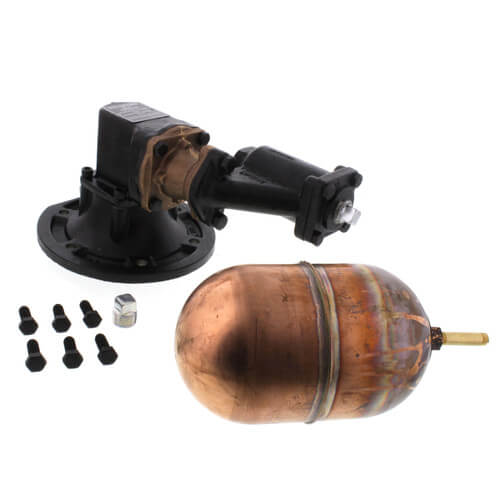

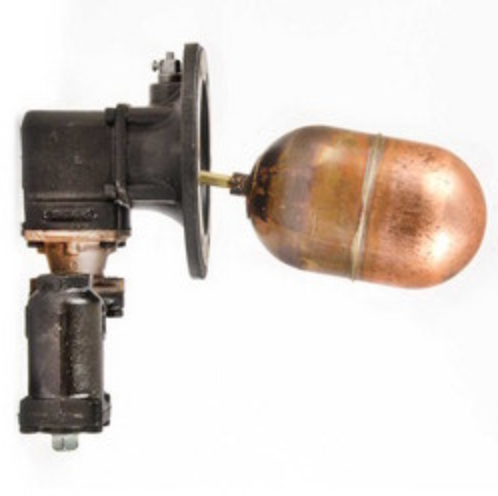

MCDONNELL 21 Make-Up Water Feeder

Product Description

The MCDONNELL 21 Make-Up Water Feeder is suitable for use in boiler receiver tanks. This product features direct mounting that removes the need for equalizing connections. It is designed to deliver efficient operation with its proportional feed action.

• Suitable for boiler receiver tanks
• Direct mounting eliminates equalizing connections
• Proportional feed action ensures efficiency

Product Highlights

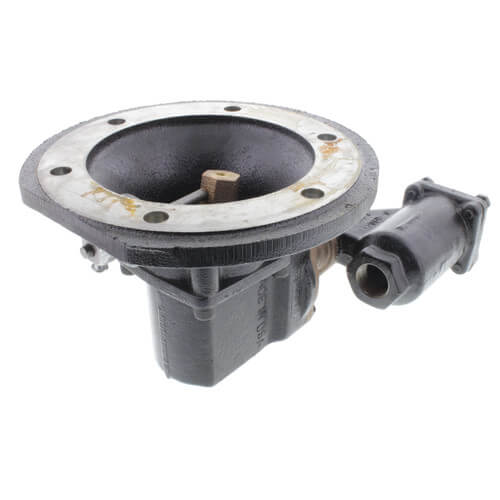

This make-up water feeder is built with a soft seat for a strong seal. It includes a mounting flange with six bolt holes for easy installation.

Product Information

Standard Information

• Application: Boiler Receiver Tanks
• Type: Make-Up

Technical Specifications

• Max Pressure (PSI): 150
• Max Vessel Pressure: 35 psi
• Max Inlet Water Temperature (F): 120 degrees F
• Width (Inches): 17.4375
• Height: 11.8125
• Mount: 5-3/4 inch Bolt Circle
• Bolt Hole Size: 7/16 inch
• Size: 3/4 inch
• Connection Type: Threaded
