Mcdaniel Metals SP10-48T Supply Plenum R-6 Insulated

Product Description

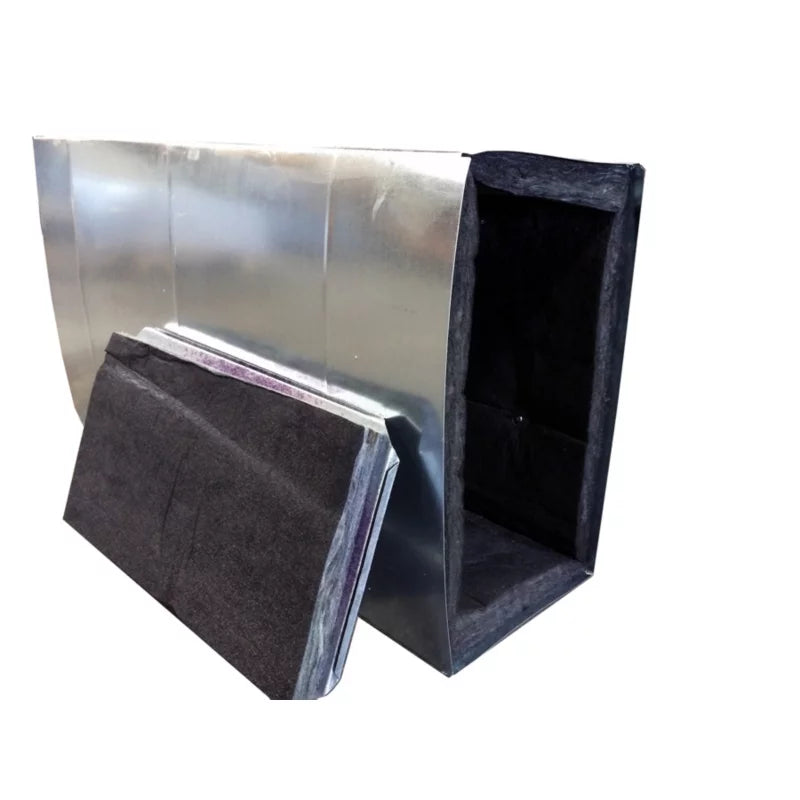

The MCDANIEL METALS SP10-48T is a factory-insulated sheet metal supply plenum designed for forced-air HVAC systems. Constructed from steel with a silver finish, this plenum measures 19.5 inches in length, 48 inches in width, and 11.25 inches in height, making it suited for full-width air handler or furnace installations. R-6 insulation is integrated into the assembly, reducing heat loss and limiting condensation on exterior surfaces. Licensed HVAC technicians and sheet metal contractors install this component as part of a supply-side duct system. At 34.592 pounds, the unit is a substantial, commercial-grade fabrication intended for permanent installation.

The SP10-48T supply plenum is used in residential and light commercial forced-air heating and cooling applications. It connects directly to the supply outlet of a gas furnace, electric air handler, or heat pump air handler, serving as the primary transition point from equipment to supply ductwork. Its 48-inch width accommodates wide equipment footprints common in horizontal or downflow installations. This plenum is appropriate for attic, basement, utility closet, and crawlspace installations where insulated plenums are required by code or energy efficiency standards.

Key Features

• Integrated R-6 insulation reduces heat transfer and limits condensation on the plenum exterior
• Steel construction provides structural rigidity and long service life in permanent duct installations
• Large 48-inch width suits wide air handler and furnace supply openings
• 19.5 inches x 48 inches x 11.25 inches dimensions support high-volume airflow distribution
• Manufactured in the USA
• Prop 65 compliant — relevant for installations in California

Compatibility

Designed as an OEM-style supply plenum for forced-air residential and light commercial HVAC systems requiring an insulated rectangular plenum at the equipment supply outlet.

Installation Notes

Installation should be performed by a licensed HVAC technician or sheet metal contractor in accordance with local mechanical codes and SMACNA duct construction standards. Shut down and lock out the HVAC system before beginning plenum installation. Seal all joints with listed duct sealant or mastic and secure connections with sheet metal screws per local code requirements. Verify that the plenum dimensions align with the equipment supply collar and the connected ductwork before final fastening.

Technical Specifications

• Length: 19.5 inches
• Width: 48 inches
• Height: 11.25 inches
• Weight: 34.592 pounds
• Material: Steel
• Insulated: Yes
• Insulation Rating: R-6
• Color: Silver
• Country of Origin: USA

Standard Information

• Brand: MCDANIEL METALS
• Manufacturer Part Number: SP10-48T
