Mcdaniel Metals PL19X23X36-R6 Supply Plenum 26GA R6

Product Description

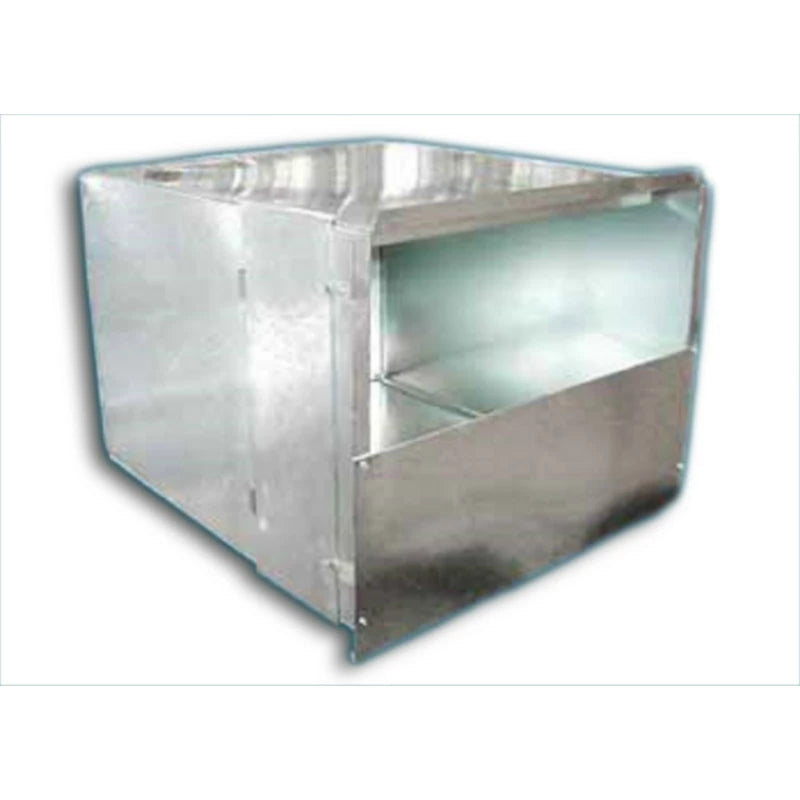

The MCDANIEL METALS PL19X23X36-R6 is a fabricated galvanized sheet metal supply plenum built to R6 insulation standards for use in forced-air HVAC distribution systems. Constructed from 26-gauge galvanized steel, this plenum measures 19 inches wide by 23 inches deep by 36 inches in length and ships without a flange configuration. At 25.65 pounds, it is designed for permanent installation at the supply outlet of a residential or light commercial air handler or furnace. Licensed HVAC technicians and sheet metal contractors are the primary installers of this component.

This plenum is suited for residential and light commercial forced-air systems where a non-flanged, insulated supply plenum is required at the air handler or furnace supply outlet. The R6 insulation value makes it appropriate for installations in unconditioned spaces such as attics, crawlspaces, and mechanical rooms where thermal performance and condensation control are priorities. Fabricated to order from galvanized sheet metal, it is available with accommodations for ductliner or flanges on custom runs. This unit ships as a standard no-flange configuration.

Key Features

• 26-gauge galvanized steel construction for durability and corrosion resistance
• R6 insulation value suitable for unconditioned space installations
• No-flange design for direct duct connection configurations
• Fabricated to order from galvanized sheet metal
• Silver galvanized finish; country of origin USA

Compatibility

Designed as an OEM-style fabricated supply plenum for residential and light commercial forced-air HVAC systems requiring a 19 x 23 x 36 inch non-flanged plenum at the air handler or furnace supply outlet.

Installation Notes

Installation should be performed by a licensed HVAC technician or sheet metal contractor in accordance with local mechanical codes and SMACNA duct construction standards. Disconnect and lock out power to the air handler or furnace before beginning plenum installation. Seal all joints with UL-listed duct sealant or metal tape rated for the application to maintain system efficiency and prevent air leakage. Do not compress or damage the insulation during handling or installation, as this will reduce the rated R-value.

Technical Specifications

• Gauge: 26 GA
• R-Value: R6
• Length: 36 inches
• Width: 23 inches
• Height (Depth): 19 inches
• Weight: 25.65 pounds
• Flanged: No
• Galvanized: Yes
• Insulated: Yes
• Material: Galvanized Sheet Metal
• Color: Silver
• Country of Origin: USA

Standard Information

• Brand: MCDANIEL METALS
• Manufacturer Part Number: PL19X23X36-R6
