Mcdaniel Metals PL13X193/4X36-R6 Insulated Plenum R-6

Product Description

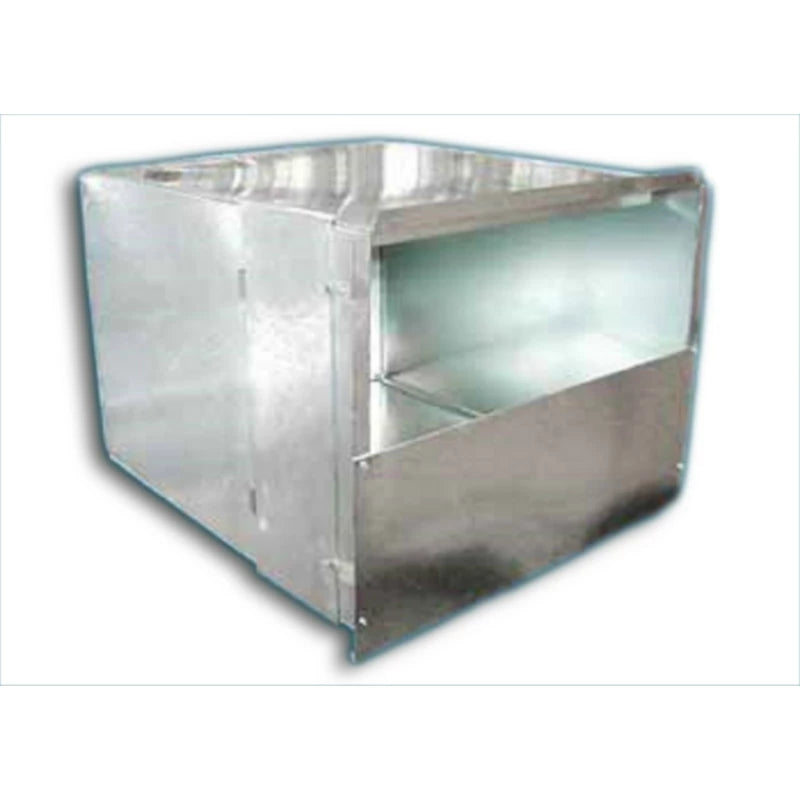

The MCDANIEL METALS PL13X193/4X36-R6 is a fabricated sheet metal plenum box constructed from 26-gauge galvanized steel with an R-6 insulation rating. Measuring 13 inches wide by 19.75 inches deep by 36 inches long, this plenum is designed to transition and distribute conditioned air within residential and light commercial forced-air HVAC systems. The galvanized steel construction resists corrosion in typical duct environments, and the integrated R-6 insulation reduces heat transfer and helps maintain supply air temperatures from the air handler to downstream duct runs. Installation is handled by licensed HVAC technicians as part of new system installations or duct replacement work.

This plenum is suited for use with residential and light commercial air handlers where a no-flange, insulated plenum is required. The 26-gauge galvanized construction meets standard fabrication specifications for supply-side plenum applications. At 36 inches in length, it provides adequate transition depth for typical air handler connections. Custom fabrication options including ductliner accommodations and flanged configurations are available from the manufacturer, but this unit is supplied without flanges as noted.

Key Features

• 26-gauge galvanized steel construction for corrosion resistance and structural rigidity
• R-6 insulation value reduces heat gain or loss in unconditioned spaces
• No-flange design for installations where slip-fit or field-fabricated connections are preferred
• Fabricated to order for consistent dimensional accuracy
• 13 x 19.75 x 36 inch profile fits common residential and light commercial air handler footprints

Compatibility

Designed as an OEM-style fabricated plenum for residential and light commercial forced-air HVAC systems requiring a no-flange insulated supply plenum in a 13 x 19.75 x 36 inch configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the air handler and confirm the system is de-energized before connecting or sealing the plenum. Seal all joints with listed duct sealant or UL 181-rated tape in accordance with applicable mechanical codes. Support the plenum per local mechanical code requirements to prevent stress on the air handler cabinet connection.

Technical Specifications

• Gauge: 26 GA
• R-Value: R-6
• Length: 36 inches
• Width: 19.75 inches
• Height: 13 inches
• Weight: 19.15 pounds
• Material: Galvanized Steel
• Flanged: No
• Insulated: Yes
• Color: Silver
• Country of Origin: USA
• UPC: 845927045716

Standard Information

• Brand: MCDANIEL METALS
• Manufacturer Part Number: PL13X193/4X36-R6
