Mcdaniel Metals DP-36X32-22GW Welded Drain Pan 32x36 in

Product Description

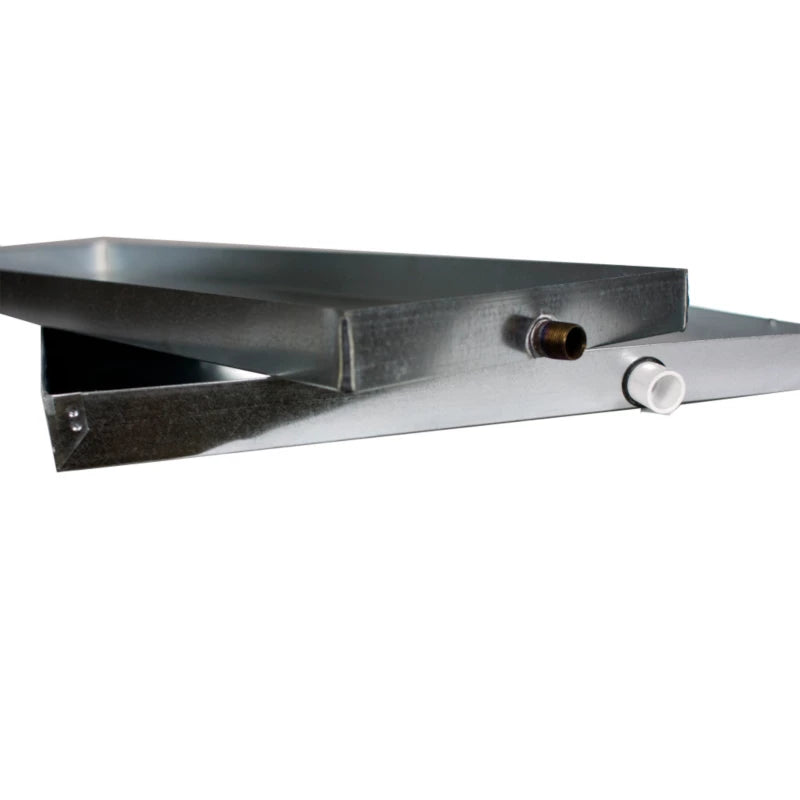

The MCDANIEL METALS DP-36X32-22GW is a welded drain pan designed to collect and redirect condensate from air handler and furnace-with-coil installations. Fabricated from 22-gauge galvanized steel, this pan measures 32 inches wide by 36 inches long by 2 inches tall and weighs 10 pounds. The galvanized finish provides corrosion resistance in the wet, humid environment beneath an evaporator coil. A single 3/4-inch drain connection allows condensate to route to a trap or condensate pump. Licensed HVAC technicians and plumbers typically install this pan as part of new equipment installation or as a code-required secondary drain pan in attic and overhead applications.

This drain pan is sized for residential and light commercial air handlers and furnaces with coils where a 32-inch by 36-inch footprint is required. It is a common fit for overhead or attic-mounted equipment where local mechanical codes mandate a secondary or auxiliary pan beneath the primary unit to protect the structure from overflow damage. The welded construction eliminates seams that can leak over time, making it well suited for installations where access for ongoing inspection is limited.

Key Features

• Welded construction eliminates seam leaks common in folded or snap-together pans
• 22-gauge galvanized steel provides corrosion resistance in continuous condensate exposure
• 32 inches x 36 inches footprint accommodates full-size residential coil assemblies
• 2-inch depth provides adequate condensate capacity between service intervals
• Single 3/4-inch drain connection for standard condensate line or pump inlet
• Manufactured in the USA

Compatibility

Designed for use with air handlers or furnaces with coils requiring a 32-inch by 36-inch drain pan. Verify equipment footprint dimensions before installation to confirm fitment.

Installation Notes

Installation is typically performed by a licensed HVAC technician. Shut down and lock out the air handler or furnace before positioning the pan. Ensure the drain connection is properly trapped and pitched per the International Mechanical Code to prevent standing water and microbial growth. Do not restrict or cap the drain outlet, and confirm the pan sits level under the equipment to ensure full drainage.

Technical Specifications

• Length: 36 inches
• Width: 32 inches
• Height: 2 inches
• Weight: 10 pounds
• Gauge: 22 GA
• Material: Galvanized Steel
• Color: Silver
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inch
• For Use With: Air Handler or Furnace with Coil
• Country of Origin: USA

Standard Information

• Brand: MCDANIEL METALS
• Manufacturer Part Number: DP-36X32-22GW
