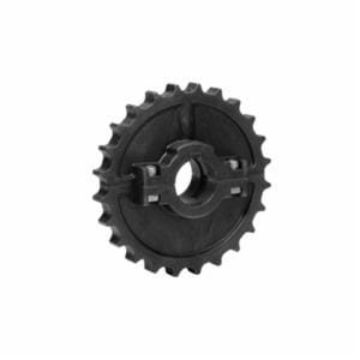

MCC 614-64-3 REX Molded Split Block Chain Sprocket 1-1/4 in

Product Description

The MCC 614-64-3 REX is a molded split block chain sprocket designed for use with MatTop 4700 and 5700 series chains. It features a bore diameter of 1-1/4 inches and an outside diameter of 6.07 inches. This sprocket has 25 teeth, crafted from glass reinforced polyamide material for durability. Its design allows for easy installation, making it suitable for various applications.

• Features a bore diameter of 1-1/4 inches
• Constructed from glass reinforced polyamide
• Compatible with MatTop 4700 and 5700 series chains

Product Highlights

This molded split block sprocket is ideal for conveyor systems, ensuring efficient chain interaction.

Product Information

Standard Information

• Brand: MCC
• Manufacturer: Rexnord

Technical Specifications

• Series: 5700
• Bore Diameter: 1-1/4 inches
• Outside Diameter: 6.07 inches
• Number of Teeth: 25
• Length Through Bore: 2 inches
• Screw Size: 3/8-16
• Keyway Size: 1/4 inches W x 1/4 inches H x 1/8 inches D
• Pitch Diameter: 6.032 inches
• Material: Glass Reinforced Polyamide
