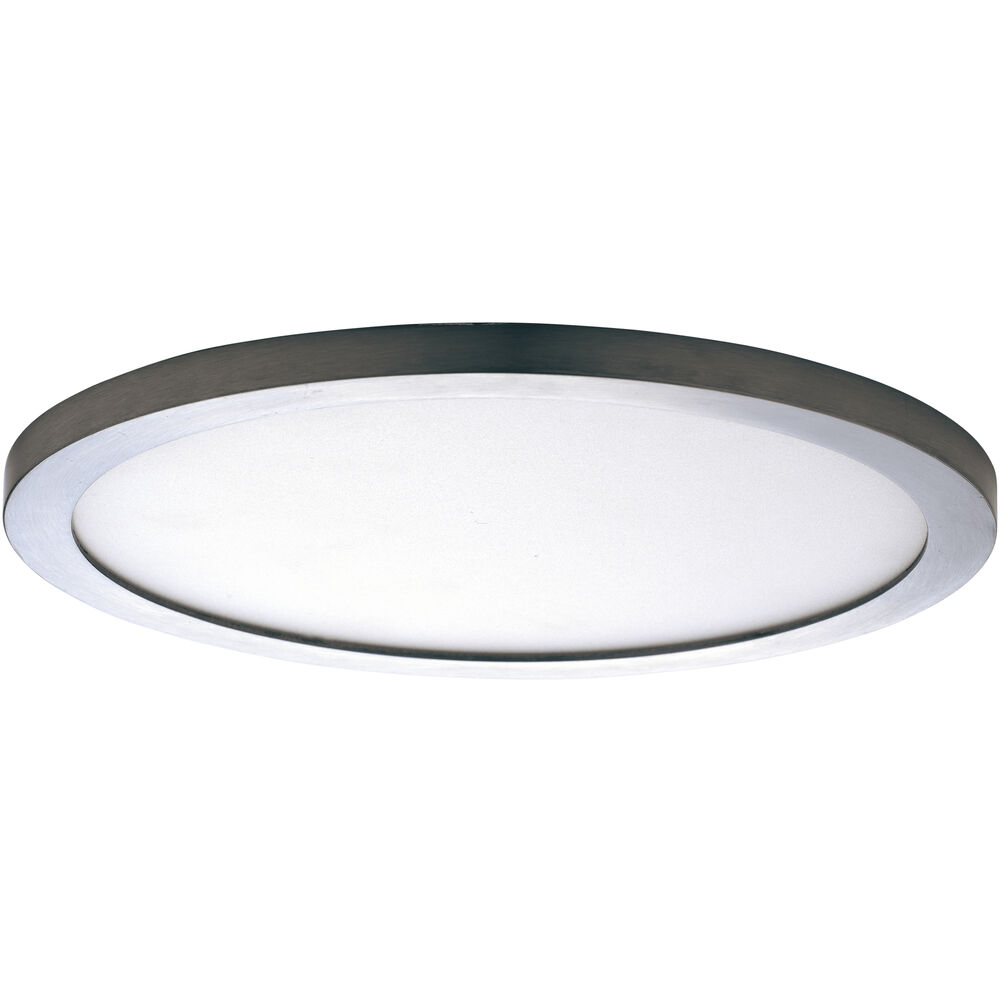

Maxim Lighting 58714wtsn wafer rd led surface mount 20w 9 inch

Product Description

The MAXIM LIGHTING 58714WTSN Wafer RD LED Surface Mount is engineered for a low-profile recessed look without high installation costs. Constructed from die-cast aluminum, it utilizes edge-lit technology for superior heat dissipation and uniform light distribution. This design extends LED life and enhances light diffusion, making it suitable for various residential and commercial applications requiring efficient and long-lasting illumination.

• Low profile design mimics recessed lighting without the high cost.
• Constructed from durable die-cast aluminum for efficient heat management.
• Edge-lit technology ensures very even light distribution and extended LED life.

Product Highlights

This MAXIM LIGHTING 58714WTSN LED surface mount offers a low-profile design, superior heat dissipation, and extended LED life with even light diffusion.

Product Information

Standard Information

• Brand: MAXIM LIGHTING
• Manufacturer Part Number: 58714WTSN
• Country of Origin: China

Technical Specifications

• Country of Origin: China
• UPC: 783209257153
• CRI: 90
• Color Temperature: 3000K
• Dimmable: Yes
• Light Source: LED
• Bulb Included: Integrated
• Input Voltage: 120-277V
• Output Voltage: 35V
• Dimmable Type: ELV at 120V
• Rated Life Hours: 50000
• Bulb Type: PCB Integrated
• Lead Wire Length: 6 inches
• Lumens: 1650
• Number of Light Sources: 1
• Bulb Socket: PCB Integrated
• Wattage: 20.00W
• ADA Compliant: Yes
• Energy Star Certified: Yes
• Installation Position: Wall/Ceiling
• Certifications: cETLus
• Wet Location Rated: Yes
• PCB Board Replaceable: No
• Glass Color: White
• Material: Aluminum/Polycarbonate
• Shade Material: Polycarbonate
• Mounting Type: Close-to-Ceiling - Surface Mount Panel
• Design Style: Modern, Transitional
• Min Operating Temperature: -4 Degrees F
• Collection: Wafer
• Lighting Method: Downlight
• Efficiency: 82.5 Lumens/Watt
• Fixture Type: Non Removable
• Assembly Required: Yes
• Shade Color: White
• Shade Shape: Round
• Dark Sky Compliant: No
• Title 24 Certification: JA8 Listed
