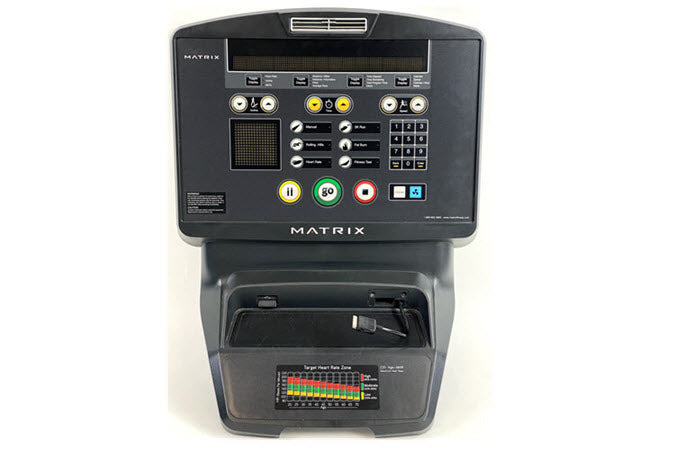

Matrix Fitness 1000226496 Control Board Console

Product Description

The MATRIX FITNESS 1000226496 is a control board console replacement part designed for Matrix Fitness cardio and exercise equipment. The console control board serves as the central processing and display interface for the machine, managing user input, workout program data, and operational feedback during use. This part is intended for fitness equipment technicians and qualified service professionals performing component-level repairs on Matrix Fitness units.

This control board console is applicable to Matrix Fitness cardio equipment requiring console-level repair or replacement. The H001S001 coating designation indicates a treated or finished board variant, which may be relevant when matching the correct replacement to a specific production run or unit configuration. Technicians should verify the part number against the equipment service manual before ordering to confirm fitment for the specific machine being serviced.

Key Features

• OEM-style console control board replacement for Matrix Fitness equipment
• H001S001 coating designation for correct variant matching
• Serves as the central interface and processing board for machine operation
• Designed for component-level repair and field replacement

Compatibility

Designed as an OEM-style replacement console control board for Matrix Fitness cardio and exercise equipment. Verify part number 1000226496 against the unit service documentation before installation to confirm correct application.

Installation Notes

Installation should be performed by a qualified fitness equipment technician or electronics service professional. Always power down and unplug the equipment completely before accessing or replacing any electronic control board components. Handle the board by its edges to avoid electrostatic discharge damage to sensitive components. Refer to the Matrix Fitness service manual for connector routing, mounting hardware, and reassembly procedures specific to the equipment model.

Technical Specifications

• Part Type: Control Board Console
• Variant Designation: H001S001 Coating T

Standard Information

• Brand: MATRIX FITNESS
• Manufacturer Part Number: 1000226496
