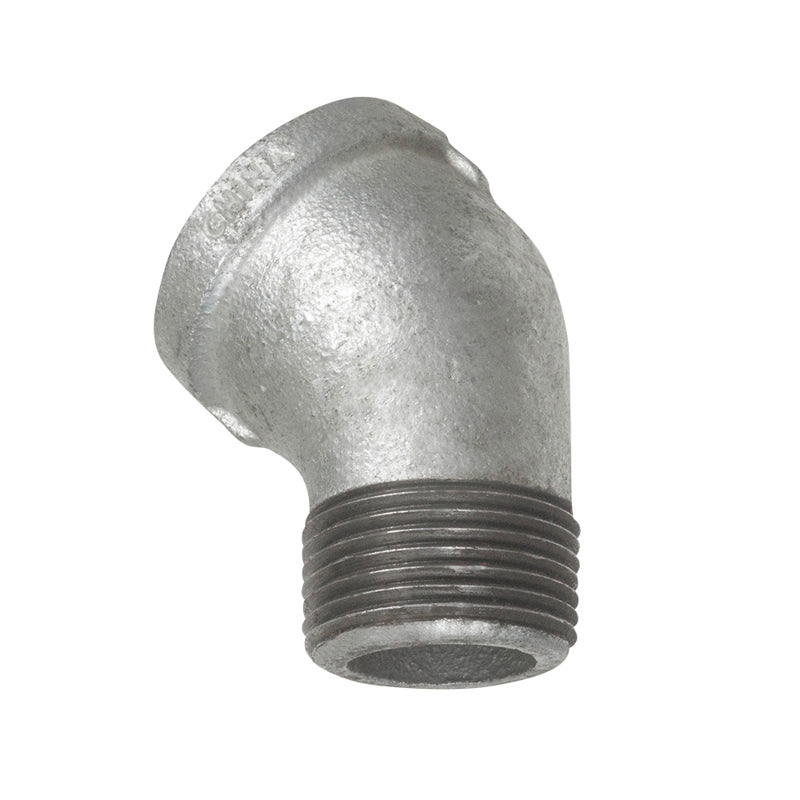

Matco-Norca ZMGLST4506 Street Elbow 1-1/4 in

Product Description

The Matco-Norca ZMGLST4506 street elbow is a fitting that allows a change in direction for pipes at a 45-degree angle. It is specifically designed for 1-1/4 inch nominal size pipes. Made from galvanized malleable iron, this fitting is built to withstand demanding environments and is rated for a pressure class of 150 lbs.

• Constructed from galvanized malleable iron
• Conforms to ANSI/ASME B16.14/B16.3 standards
• Suitable for temperatures ranging from -20 to 151 degrees F

Product Highlights

This pipe fitting is essential for plumbing and HVAC systems, enabling easy transitions and connections where 45-degree angles are required.

Product Information

Standard Information

• End Style: Thread
• Domestic/Import: Import

Technical Specifications

• Material: Malleable Iron
• Nominal Size: 1-1/4 in
• Pressure Class: 150 lb
• Pressure Rating: 300.23 psi
• Temperature Rating: -20 to 151 degrees F
• Standards and Approvals: ANSI/ASME B16.14/B16.3, ASME B1.201, ASTM A197/197M, FM Approved, UL Listed
• Degree: 45 degrees
