Matco-norca zmbpl08 2 Inch Class 150 Black Malleable Iron Plug

Product Description

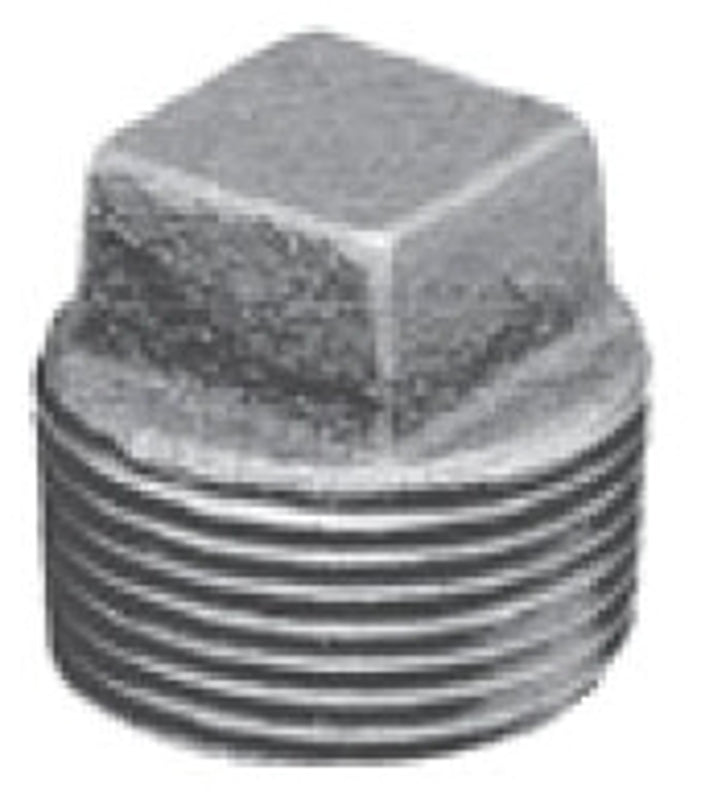

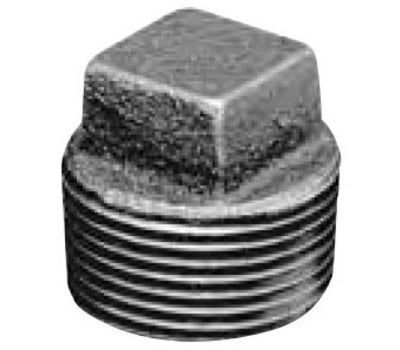

The MATCO-NORCA zmbpl08 is a 2 inch square head pipe plug rated at Class 150, manufactured from Chinese malleable iron meeting ASTM A197/A197M specification. This cored, solid plug features male threaded end connections conforming to ASME B1.20.1 thread standards. It carries a black finish and is rated for temperatures up to 550 degrees F. Plumbers, pipefitters, and mechanical contractors use this fitting to cap off threaded pipe ends in fire protection, industrial, and general plumbing systems. The square head drive design allows installation and removal with a standard socket or wrench without damaging the fitting body.

This plug is suited for use in residential and commercial piping systems where a reliable, pressure-rated threaded closure is required. At 2 inches nominal pipe size and 1.56 inches overall length, it fits standard NPT threaded pipe and fittings. Applicable certifications include UL and FM listings, making it appropriate for fire protection piping installations as well as general mechanical systems requiring listed components.

Key Features

• Square head cored and solid construction for reliable wrench-drive installation
• Class 150 pressure rating suitable for standard piping systems
• Temperature rated to 550 degrees F for high-temperature service
• Black finish malleable iron meets ASTM A197/A197M material specification
• UL and FM listed for use in fire protection piping applications
• Conforms to ASME B1.20.1, ASME B16.3, ASME B16.34, ASME B16.39, and ANSI standards

Compatibility

Designed as an OEM-style replacement and standard fitting for Class 150 malleable iron threaded piping systems using 2 inch NPT connections in fire protection, industrial, and general plumbing applications.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC and IFGC code requirements. Depressurize and isolate the piping system completely before installing or removing threaded plugs. Apply appropriate thread sealant or PTFE tape to the male threads prior to installation. Use a properly sized socket or pipe wrench on the square head to achieve a leak-free joint without overtightening the fitting.

Technical Specifications

• Nominal Pipe Size: 2 inches
• Overall Length: 1.56 inches
• End Connection: Male Threaded
• Pressure Rating: Class 150
• Temperature Rating: 550 degrees F
• Material: Malleable Iron
• Material Specification: ASTM A197/A197M
• Finish: Black
• Fitting Type: Square Head, Cored, Solid
• Applicable Standards: UL, FM, ASME B1.20.1, ASME B16.34, ASME B16.39, ASME B16.3, ANSI/ASME B16.3, ISO 9001, GS143, JIS H-0401, BS 21, DIN 2999

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: zmbpl08
