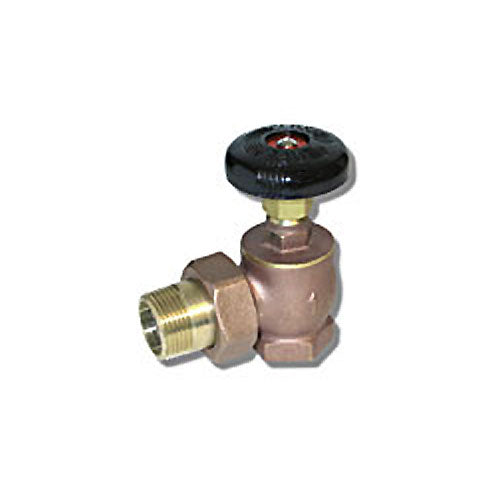

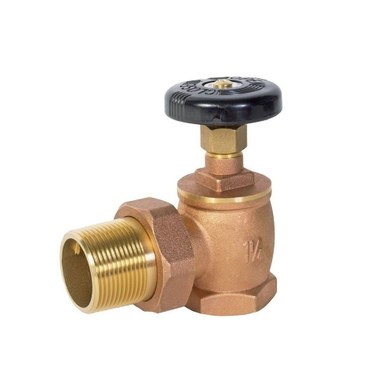

MATCO-NORCA BARV-1250 Steam Radiator Angle Valve

Product Description

The MATCO-NORCA BARV-1250 is an angle valve made for steam radiator applications. This valve is built from a heavy pattern of brass. It features a one and one-fourth inch Female Iron Pipe inlet and male union outlet. This allows for easy connection to steam radiators. The valve also comes with a nut and tailpiece to support installation and maintenance tasks. It is designed to regulate steam flow within a pressure range of fifteen WSP to sixty WOG.

• FIP x Male Union end connections
• Includes a nut and tailpiece
• Suitable for steam radiator use

Product Highlights

This valve is essential for effective steam flow management in heating systems.

Product Information

Standard Information

• Manufacturer Part Number: BARV-1250
• Product Type: Steam Radiator

Technical Specifications

• Type: Steam Radiator Angle Valve
• Material: Brass
• End Connection: FIP x Male Union
• Valve Size: 1-1/4 inches
• Pressure (PSI): 15 WSP / 60 WOG
• Height: 5.12 inches
• Width: 3.33 inches
