Matco-Norca B-CA04LF Cap 3/4 Inch

Product Description

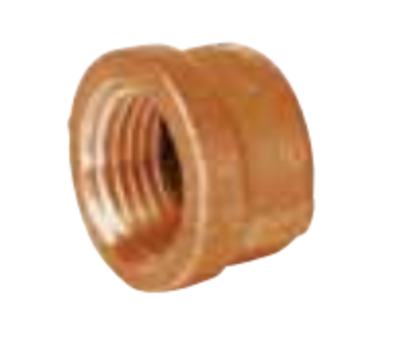

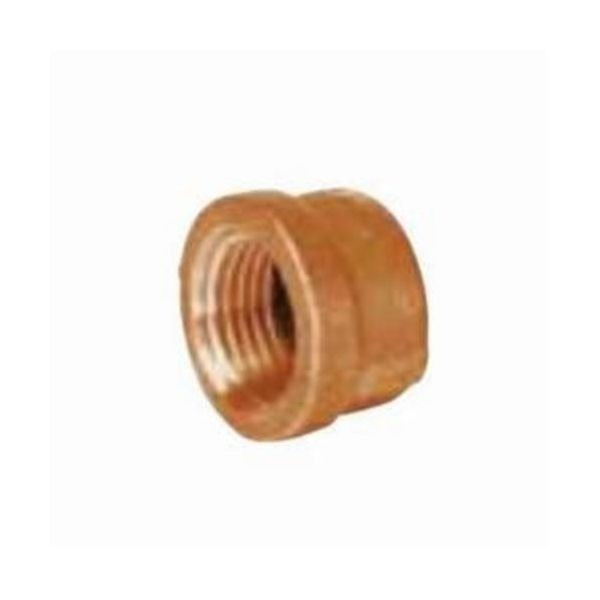

The MATCO-NORCA B-CA04LF is a 3/4 inch lead-free brass cap fitting with female threaded end connections. Constructed from cast brass, this cap is pressure rated to Class 125 and meets UL, ANSI, AB1953, UPC, IAPMO, NSF 61/4, and ASME B1.20.1/B16.15 standards. It is suitable for various plumbing applications.

• 3/4 inch nominal size
• Female threaded end connection
• Constructed from lead-free cast brass

Product Highlights

This brass cap fitting is ideal for closing the end of a pipe and is compliant with industry standards.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: B-CA04LF

Technical Specifications

• MPN: B-CA04LF
• Brand: MATCO-NORCA
• Nominal Size: 3/4 Inch
• End Connection: Female Threaded
• Material: Brass
• Process: Cast
• Pressure Rating: 125 PSI
• Applicable Standard: UL, ANSI, AB1953, UPC, IAPMO, NSF 61/4, ASME B1.20.1/B16.15
• Lead-Free: True
• Fitting Type: Cap
• Length: 0.84 in
• Pressure Class: 125 lb
• Material Standard: ASTM B62
• End Style: FNPT
• Fitting/Connector Type: Cap
• Domestic/Import: Import
• Type: Cap
• Size: 3/4"
• Shape: Round
• Product Type: CAP
• Selling Size: 3/4 in
• Connection Type: FPT
• Specifications Met: ANSI Specified, IAPMO R and T, NSF 61-4, AB1953 Approved, UPC Approved, UL Listed
• Manufacture Process: Cast
• Maximum Pressure Rating: 125 lb
