Matco-Norca 771S04 Ball Valve 3/4 in CTS Solvent

Product Description

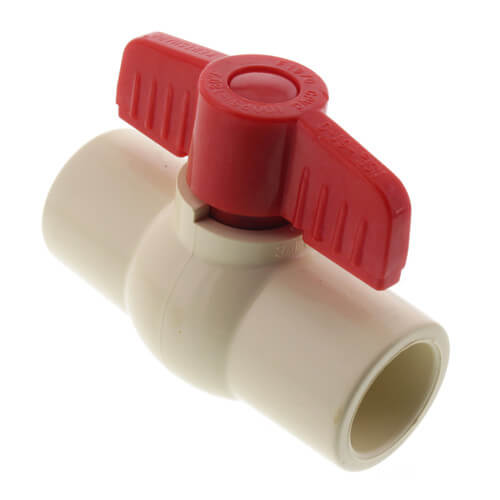

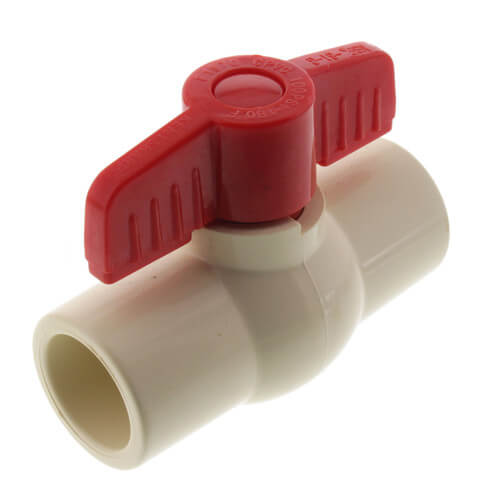

The MATCO-NORCA 771S04 is a CPVC ball valve with a 3/4 in CTS solvent connection. It features a PTFE seat and EPDM O-ring for reliable sealing. The valve is suitable for plumbing applications with a pressure rating of 100 PSI at 180 degrees F. The valve body and ball are constructed from CPVC.

• Nominal Size 3/4 Inch x 3/4 Inch
• End Connection Solvent x Solvent
• Pressure Rating 100 PSI at 180 Deg F

Product Highlights

CPVC ball valve with solvent connections, suitable for plumbing applications. Features PTFE seat and EPDM O-ring.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 771S04

Technical Specifications

• Description: 3/4in Cpvc Ball Valve
• Manufacturer: Matco-Norca
• Model #: 771
• PDW MFR CAT: 771S04
• Pittman #: 145484
• Size: 3/4"
• UPC: 082647771048
• Ball Material: CPVC
• Connection Size: 3/4 in CTS
• Connection Type: Solvent
• Item Name: Ball Valve
• Material Specifications: ASTM D2846
• Material: CPVC
• Operator Type: ABS White Handle
• Pressure Rating: 100 psi at 180 deg F
• Seat Material: PTFE
• Standards/Certifications: ISO 9002 standard, NSF certified
• Connection Method: Socket
• Nominal Size: 3/4 in
• End Style: Solvent
• Temperature Rating: 180 deg F
• Top to Inlet Center: 1.77 in
• Body Material: CPVC
• Softgoods Material: PTFE/EPDM
