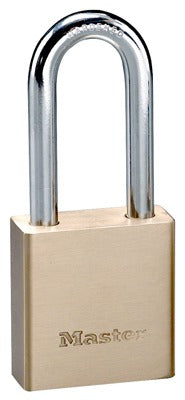

Master Lock Co 576DLHPF Solid Brass Padlock

Product Description

The MASTER LOCK CO 576DLHPF is a solid brass padlock built for applications where corrosion resistance and physical security are both required. The body measures 1-3/4 inches and is constructed from solid brass, providing durability and long-term resistance to rust and corrosion. The hardened steel shackle extends 2 inches in length with a 5/16-inch diameter, resisting cutting and sawing. A 5-pin cylinder delivers strong pick resistance, and dual ball locking protects against prying and hammering. This padlock ships keyed different, meaning each unit in a set operates on its own unique key.

The 576DLHPF is suited for use in outdoor and marine-adjacent environments, storage units, gates, and equipment enclosures where moisture exposure would degrade a standard steel padlock. It is a practical choice for facilities managers, contractors, and property maintenance professionals who need dependable, corrosion-resistant security hardware. The keyed-different configuration is standard for multi-lock installations where separate key control is required per point of entry.

Key Features

• Solid brass body resists corrosion in outdoor and high-moisture environments
• Hardened steel shackle provides resistance to cutting and sawing
• 2-inch shackle length with 5/16-inch diameter fits a wide range of hasp and latch sizes
• Dual ball locking mechanism protects against prying and hammering attacks
• 5-pin cylinder for strong pick resistance
• Compatible key blanks: Master Lock K81KRBOX, Ilco M4, 1092V, TV 633-800

Compatibility

Accepts key blanks Master Lock K81KRBOX or Ilco blank M4, 1092V, and TV 633-800. Designed as a keyed-different solid brass padlock for use with standard hasps, chains, and latches sized for a 5/16-inch shackle diameter.

Installation Notes

Installation requires no tools beyond proper hasp or chain hardware sized to accommodate the 5/16-inch shackle. Confirm the hasp opening and staple clearance are compatible with the 2-inch shackle length before installation. No electrical isolation or pipe shutoff is required. Inspect shackle seating and confirm full engagement of the locking mechanism before placing the hardware in service.

Technical Specifications

• Body Material: Solid Brass
• Body Width: 1-3/4 inches
• Shackle Length: 2 inches
• Shackle Diameter: 5/16 inches
• Shackle Material: Hardened Steel
• Cylinder Type: 5-Pin
• Keying: Keyed Different
• Locking Mechanism: Dual Ball Locking
• Compatible Key Blanks: Master Lock K81KRBOX, Ilco M4, 1092V, TV 633-800
• Weight: 2.65 pounds
• Package Quantity: 4
• Unit of Measure: EA

Standard Information

• Brand: MASTER LOCK CO
• Manufacturer Part Number: 576DLHPF
