Master Lock Co 1414DAT Receiver Pin Clip Pivot Lock

Product Description

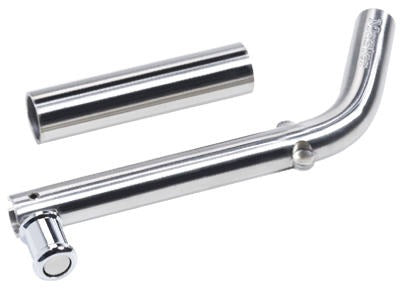

The MASTER LOCK CO 1414DAT is a receiver pin and clip assembly with a built-in pivot lock, designed to secure trailer hitch connections at the receiver tube. A stainless steel sleeve makes this a single-unit solution compatible with both 1/2-inch and 5/8-inch receiver sizes. The bent-pin style reaches into tight or hard-to-access receiver openings, and the tapered end simplifies insertion. The hardened steel pin provides improved resistance to cutting and shear forces. The pivot lock mechanism rotates to allow insertion, then pivots back to lock the pin in place, eliminating the need for a separate clip or cotter pin.

This pin and clip assembly is used in trailer hitch applications where a standard hitch pin or cotter pin arrangement is inadequate or inconvenient. The dual-size compatibility makes it a versatile stock item for service trucks and fleet maintenance operations. The nickel chrome plating provides corrosion resistance for outdoor and road-use environments. Installation and removal require no tools, making it practical for frequent trailer swaps in commercial or agricultural settings.

Key Features

• Built-in pivot lock eliminates the need for a separate clip or cotter pin
• Stainless steel sleeve allows fitment in both 1/2-inch and 5/8-inch receivers
• Bent-pin style designed for tight or hard-to-reach receiver openings
• Tapered end for fast, no-fumble insertion
• Hardened steel pin construction for improved cut and shear resistance
• Nickel chrome plated finish for corrosion resistance

Compatibility

Designed for use with standard 1/2-inch and 5/8-inch trailer hitch receiver tubes. The included stainless sleeve adjusts the pin diameter to fit either receiver size as a single-unit replacement.

Installation Notes

No tools are required for installation or removal. Ensure the trailer hitch receiver and drawbar are fully seated before inserting the pin. Rotate the pivot lock to the open position for insertion, then pivot to the locked position to secure. Inspect the pin and lock mechanism for wear or deformation before each use, particularly in high-cycle or heavy-load applications.

Technical Specifications

• Compatible Receiver Sizes: 1/2 inch and 5/8 inch
• Pin Style: Bent pin with tapered end
• Pin Material: Hardened steel
• Sleeve Material: Stainless steel
• Finish: Nickel chrome plated
• Lock Type: Built-in pivot lock
• Weight: 1.97 pounds
• Package Quantity: 4 per package

Standard Information

• Brand: MASTER LOCK CO
• Manufacturer Part Number: 1414DAT
