Mason Industries ND-A-RED Double Deflection Neoprene Mount

Product Description

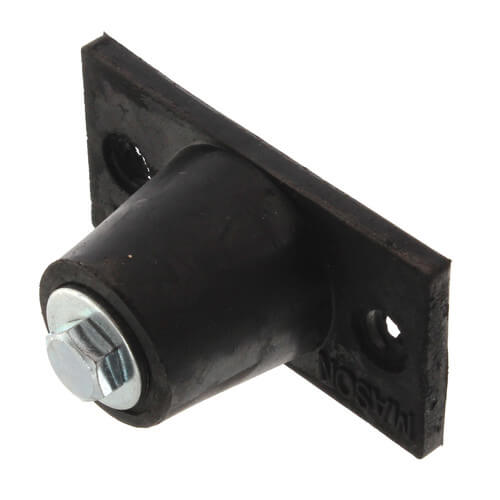

The Mason Industries ND-A-RED is a double deflection neoprene mount. It is made to reduce noise and high-frequency vibrations. The mount installs under the legs or mounting points between equipment and the floor. It features a neoprene covering to prevent corrosion of steel parts. The included cap screw and washer provide easy installation. In many cases, the bottom friction surface negates the need for bolting.

• Offers more than three times the deflection of pads.
• Prevents noise and high-frequency vibration.
• Neoprene covering prevents corrosion of steel parts.

Product Highlights

This mount is effective in isolating vibrations, making it suitable for various HVAC applications.

Product Information

Standard Information

• Series/Model: ND
• Product Type: Mounting Part

Technical Specifications

• Mounting Type: Double Deflection
• Capacity: 60 to 125 pounds
• Deflection Rating: 0.35 inches
• Material: Neoprene
• Durometer: 50
• Overall Dimension: 3-3/16 inches Length x 1-5/8 inches Width x 1-1/2 inches Height
• Maximum Bolt Diameter: 5/16 inches
• Includes: Top and Bottom Steel Plate, Cap Screw
