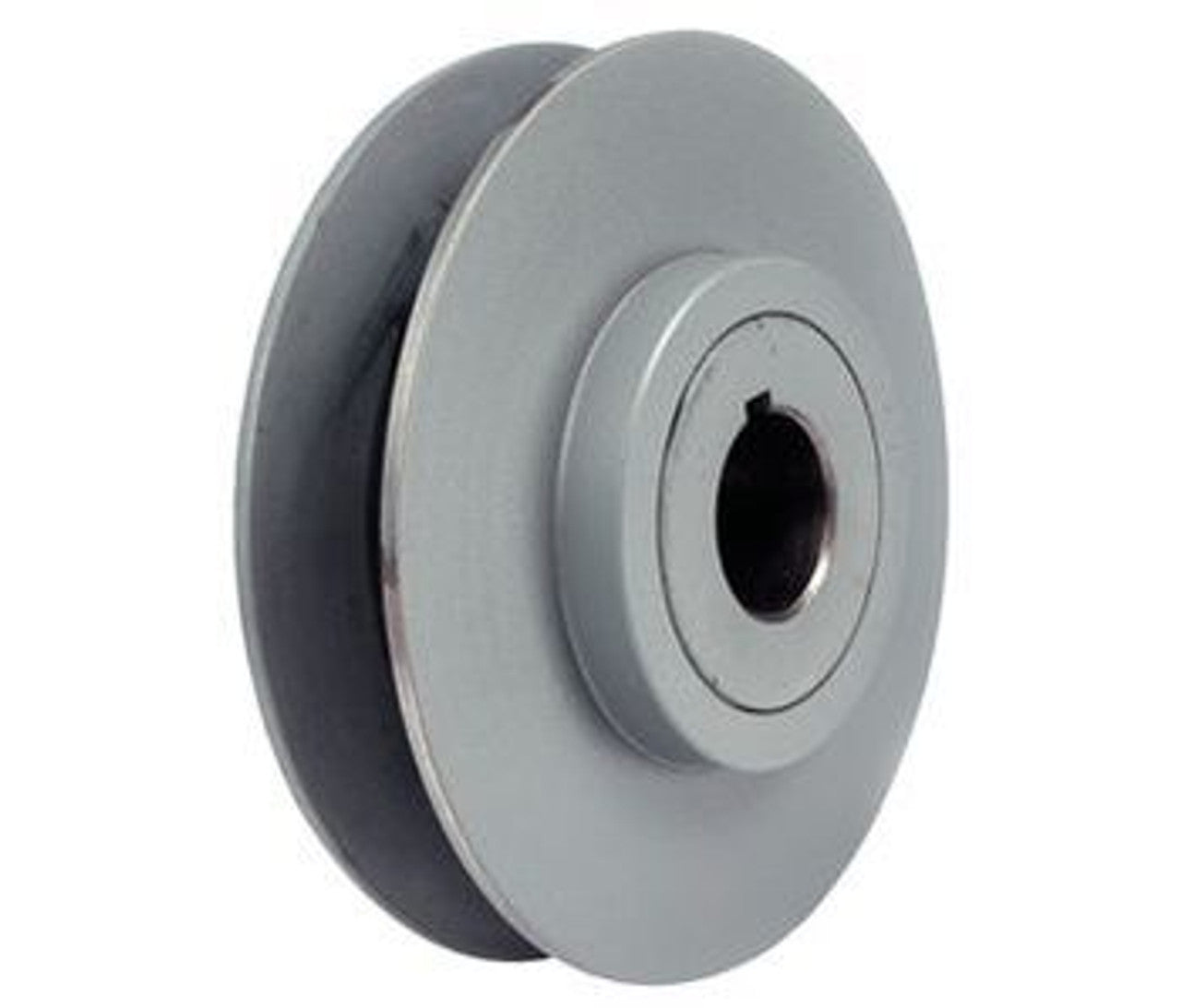

Maska MVL44-1/2 Variable Pitch Sheave

Product Description

The Maska MVL44-1/2 is a variable pitch sheave made for speed adjustments in various applications. Constructed from durable SAE G3000 cast iron, this sheave is compatible with A, 4L, B, and 5L belts.

• Sheave type: Variable Pitch
• Number of grooves: 1
• Bore diameter: 1/2 inch

Product Highlights

This sheave allows for precise speed control to meet varying operational needs.

Product Information

Standard Information

• Brand: Maska
• MPN: MVL44-1/2

Technical Specifications

• Fixed Bore Sheave Type: Variable Pitch
• Groove: Single
• Bore Diameter: 1/2 inch
• Outside Diameter: 4.15 inches
• 3L Belt Pitch Diameter: 1.7 - 2.5 inches
• 4L or A Belt Pitch Diameter: 2.0 - 3.0 inches
• 5L or B Belt Pitch Diameter: 2.5 - 3.3 inches
• Keyway: Standard
• Material: SAE G3000 Cast Iron
• Series: 1VL44
• Overall Length: 1 11/16 in
• Type: VL
• Belt Match: 1
• Finished Bore: 5/8 in
• Face Width [Min]: 5/8 in
• Weight: 1.75 LB
• Package Quantity: 1.0 Piece
• Keyway Size: 3/16 x 3/32
• A (4L) Pitch Dia. [Min]: 2.8 in
• B (5L) Pitch Dia. [Max]: 4.1 in
• No. of Grooves: 1
