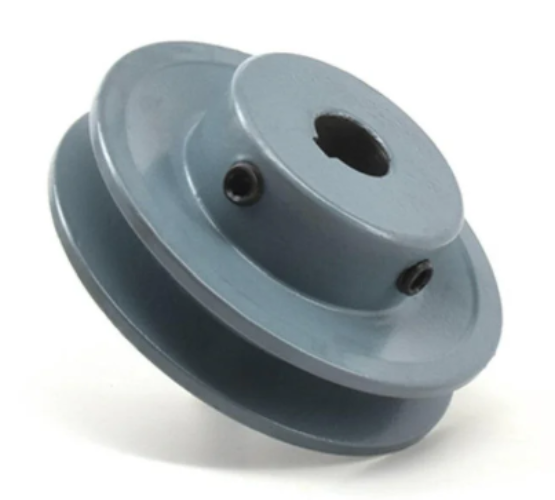

MASKA MA22-1/2 Light Duty Type 1B Single Groove Fixed Bore Sheave

Product Description

The MASKA MA22-1/2 is a light-duty, single-groove, fixed-bore sheave with a bore diameter of one-half inch. It has an outer diameter of two-point-two inches and a face width of three-quarters of an inch. This sheave is constructed from durable cast iron and is compatible with A, 3L, and 4L cross-section V-belts. The pitch diameter measures one point eighty-six inches for 3L belts and two inches for A/4L belts.

• Bore diameter of one-half inch.
• Compatible with A, 3L, and 4L V-belts.
• Constructed from cast iron.

Product Highlights

This sheave is designed for light-duty applications where reliability is essential. Ideal for various mechanical systems, its robust design ensures proper functioning while maintaining longevity.

Product Information

Standard Information

• Bore Diameter: one-half inch
• Material: Cast Iron

Technical Specifications

• Face Width: three-quarters of an inch
• Outside Diameter: two-point-two inches
• Pitch Diameter: one point eighty-six inches (3L) / two inches (A/4L)
• Type: Light Duty Type 1B
• Item Weight: zero point eighty lbs per EA
