MASKA 2MA25-5/8 Sheave

Product Description

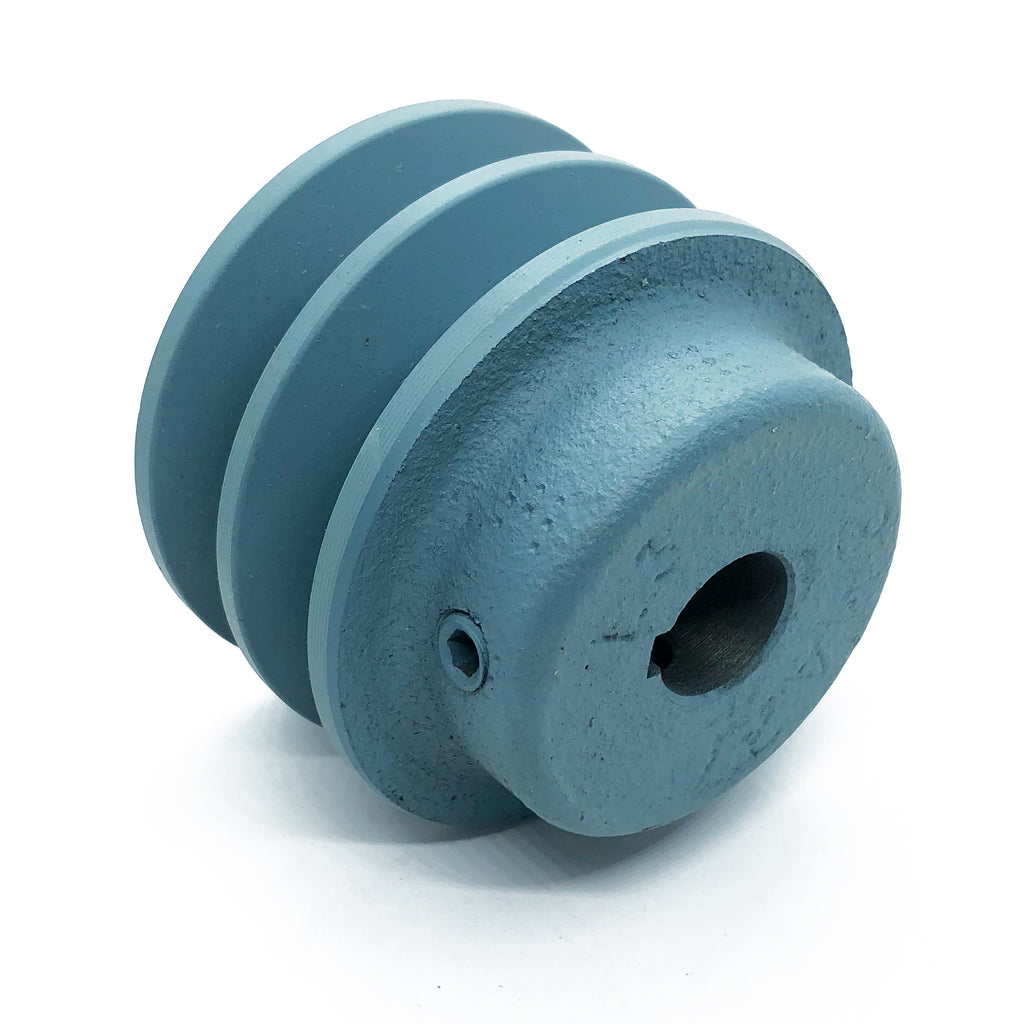

The MASKA 2MA25-5/8 sheave is a fixed bore component for power transmission in industrial settings. This sheave is made from cast iron and has a finished bore size of five-eighths inches. It has an outside diameter of two point fifty-five inches and includes two grooves to work with four-L or A section V-belts, as well as three-L belts. Two set screws are included for a secure fit on the shaft, enhancing grip and performance. The sheave is also statically balanced for optimal function and coated for protection.

• Designed with two grooves for compatibility with 4L, A, and 3L V-belts.
• Constructed from statically balanced, powder-coated cast iron.
• Includes two set screws for secure mounting on the shaft.

Product Highlights

This sheave is suitable for various applications where reliable power transmission is needed.

Product Information

Standard Information

• Brand: MASKA
• MPN: 2MA25-5/8

Technical Specifications

• Type: Light Duty Fixed Bore Sheave
• Material: Cast Iron
• Grooves: 2
• Belt Type Compatibility: 4L, A, 3L V-belts
• Bore Size: 5/8 inch
• Outside Diameter (O.D.): 2.55 inches
• Keyseat: 3/16 x 3/32 (for 5/8 - 7/8 bores)
