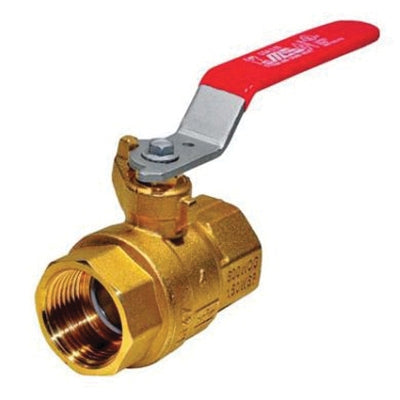

MAS B-3-LL.38 Ball Valve with Locking Lever Handle 3/8 in FNPT

Product Description

The MAS B-3-LL.38 is a brass ball valve featuring a locking lever handle. This two-piece full port valve is designed with a connection size of three-eighths inches and FNPT type. It allows for reliable control of fluid flow in various plumbing and HVAC applications.

• Blowout-proof stem
• Adjustable packing gland
• Steel lever screw, brass packing nut, cap, zinc-plated steel wing and latch lock handles

Product Highlights

This valve meets multiple industry standards and certifications.

Product Information

Standard Information

• Brand: MAS
• Manufacturer: M.A. Stewart & Sons Ltd
• Part Number: B3LL.38

Technical Specifications

• Type: 2-Piece, Full Port
• Model: B-3-LL
• Item Name: Ball Valve with Locking Lever Handle
• Ball Material: Chrome-Plated Brass
• Connection Size: 3/8 in
• Connection Type: FNPT
• Dimension: 1.73 in L
• Flow Co-Efficient: 8 Cv
• Pressure Class: Class 150
• Pressure Rating: 600 psi WOG
• Temperature Rating: -40 to 120 deg F
• Operator Type: Steel Lever Handle
• Seat Material: PTFE
• Stem Material: Brass
• Packaging Material: PTFE
• Material Specifications: ASTM A36, ASTM B124, C37700, ASTM B283, C37700
• Standards/Certifications: ANSI Z21.15/CSA 9.1, ASME B16.44/CGA-CR91-002, B16.33/CGA-3.16, ANSI B1.20.1, cULus listed, FM approved
