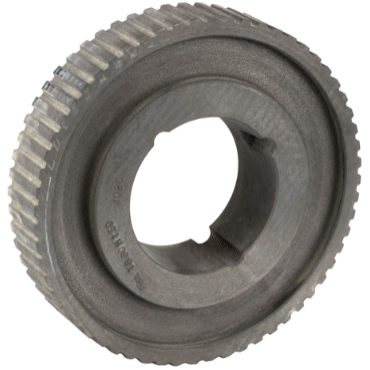

Martin TB40H200 Taperlock Bushed Timing Pulley 0.5 in Pitch 2 in Belt Width 2517

Product Description

The Martin TB40H200 is a Taperlock Bushed Timing Pulley designed for efficient engagement with timing belts. This product features a pitch of 0.5 inches and a belt width of 2 inches. The pulley has forty teeth and an outside diameter of 6.312 inches, making it suitable for various applications.

• Bushed design allows easy installation with Taper-Lock bushings.
• Constructed from durable cast iron for long-lasting performance.
• Designed for minimal friction between teeth and grooves, enhancing efficiency.

Product Highlights

This timing pulley is ideal for mechanical power transmission, ensuring accurate and reliable performance in synchronous drive systems.

Product Information

Standard Information

• Brand: Martin
• Part Number: TB40H200

Technical Specifications

• Belt Pitch: 0.5 inches
• Belt Width: 2 inches
• Number of Teeth: 40
• Outside Diameter: 6.312 inches
• Bore Type: Bushed
• Material: Cast Iron
• Bushing Series: 2517
• Weight: 9.9 lbs
