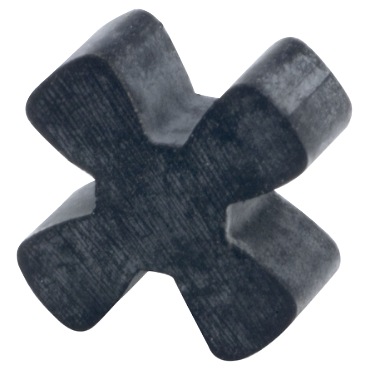

Martin SRL075 Jaw Type Coupling Insert

Product Description

The Martin SRL075 is a jaw type coupling insert designed for size zero seventy-five couplings. This insert is made from Buna-N which is also known as nitrile rubber, ensuring durability and reliability in various applications.

• Compatible with size zero seventy-five jaw couplings
• Temperature range from minus forty degrees Fahrenheit to two hundred twelve degrees Fahrenheit
• Torque rating of eighty-one inch pounds at a maximum RPM of three thousand six hundred

Product Highlights

The SRL075 coupling insert is suitable for various mechanical power transmission applications, providing flexibility and strength in operation.

Product Information

Standard Information

• Insert Style: One Piece
• Material: Buna-N (Nitrile Rubber)

Technical Specifications

• Outside Diameter: 1.75 inches
• Temperature Range [Max]: 212 °F
• Temperature Range [Min]: -40 °F
• Coupling Size: 075
• HP @ RPM: 2.3 hp @ 1800 rpm
• Torque Rating: 81 in lb
• No. of Legs: 6
• Weight: 0.03 lb
• UPC: 697950149011
