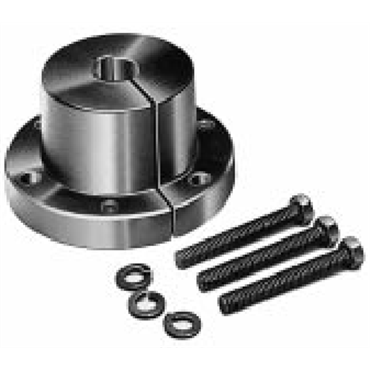

Martin SK35MM Quick Disconnect Bushing 35 mm Bore 3.875 in Flg OD Replacement 00540

Product Description

The Martin SK35MM Quick Disconnect Bushing is a reliable component designed for various mechanical applications. This bushing features a thirty-five millimeter bore and a flange outside diameter of three point eight seven five inches. Made from ductile iron, it offers durability and strength in demanding environments.

• Flange Outside Diameter: 3.875 inches
• Bore Diameter: 35 mm
• Designed for effective power transmission

Product Highlights

This bushing is engineered for quick installation and removal, making it an efficient choice for maintenance and repairs.

Product Information

Standard Information

• Brand: Martin
• MPN: SK35MM

Technical Specifications

• Bore Diameter: 35 mm
• Flange Outside Diameter: 3.875 inches
• Length Through Bore: 1.9375 inches
• Barrel Length: 1.375 inches
• Barrel Diameter: 2.812 inches
• Screw Length: 2 inches
• Flange Thickness: 0.5625 inches
• Number Of Bolt Holes: 3
• Bolt Circle Diameter: 3-5/16 inches
