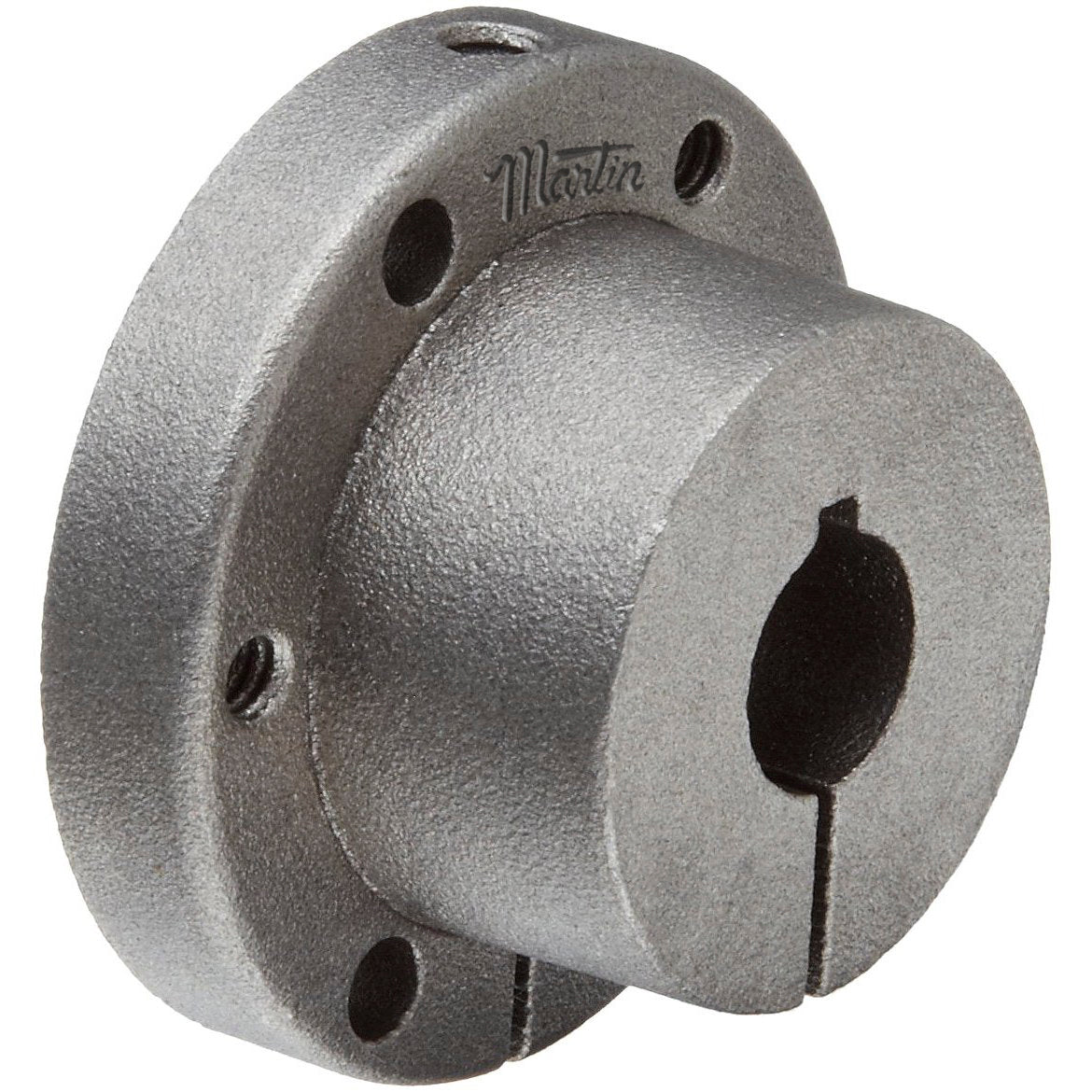

Martin SK2 Standard QD Bushing 2 in Dia Bore

Product Description

Martin QD Bushing SK2 is designed for use in power transmission applications. It features a two-inch bore diameter and a barrel diameter of two point eight one two inches. This bushing supports conventional or reverse mounting.

• Quick detachable design
• Durable steel construction
• Interchangeable with other QD bushings

Product Highlights

Sk2 QD bushing combines quality and durability, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Type: Standard

Technical Specifications

• Bore Diameter: 2 in
• Barrel Diameter: 2.812 in
• Flange Diameter: 3-7/8 in
• Overall Length: 1.938 in
• Torque Rating: 7000 in-lb
• Hub Diameter: 4-1/2 in
• Flange Thickness: 0.563 in
• Keyway Size: 1/4 x 1/2 in
• Number of Bolt Holes: 3
• Screw Size: 5/16-18 x 2 in
