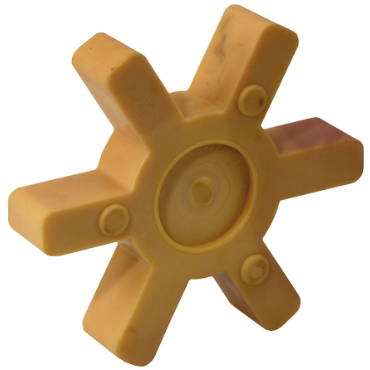

Martin SHL150 Jaw Type Coupling Insert

Product Description

The Martin SHL150 Jaw Type Coupling Insert is designed for use in size 150 jaw couplings. This insert is made from Hytrel, a thermoplastic elastomer that offers excellent resistance to abrasion and a wide temperature range. The insert is suitable for power transmission applications, making it ideal for use in various mechanical systems.

• Insert for Size 150 Jaw Coupling
• Made from durable Hytrel material
• Suitable for various mechanical power transmission applications

Product Highlights

This coupling insert provides reliable performance in power transmission situations. It can operate effectively at high speeds and under considerable torque.

Product Information

Standard Information

• Product SKU: 100814118
• Brand: Martin

Technical Specifications

• Coupling Size: 150
• Material: Hytrel
• Color: Ivory
• No. of Legs: 6
• HP @ RPM: 34.2 hp @ 1800 rpm
• Temperature Range [Min]: -65 °F
• RPM [Max]: 3600 rpm
• Torque Rating: 3591 in lb
• Outside Diameter: 3.75 in
• Temperature Range [Max]: 275 °F
• Insert Style: One Piece
• Weight: 0.21 lb
• EAN or UPC: 697950064178
